Parker HP2 Tandem Pump – Variable Displacement, Closed Loop

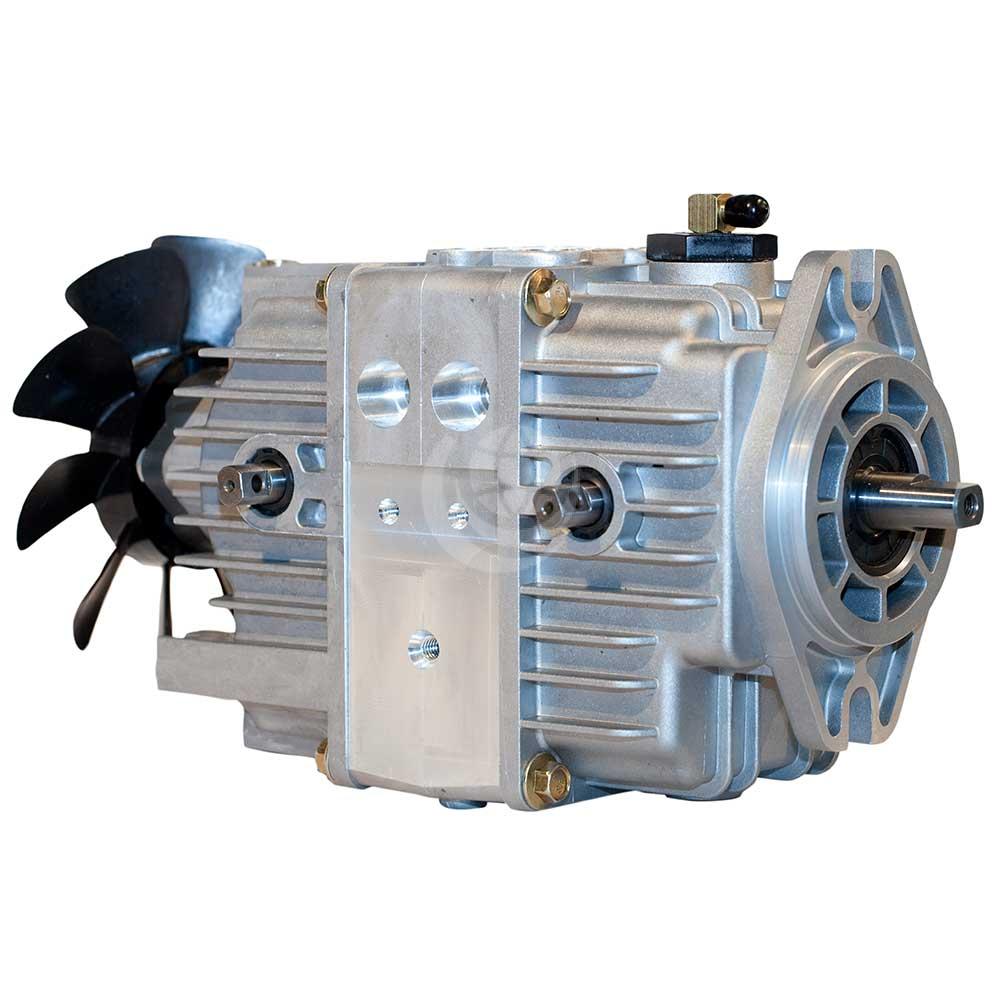

The Parker HP2 pump is a variable displacement, closed loop tandem piston pump. It comprises two independently controlled over-centre, piston pumps on a single drive shaft. They are housed in a compact reservoir with a filter and associated valving.

HP2 pumps are available with a displacement of 11.5cc/rev (HP2-12) or 16cc/rev (HP2-16). Their speed range is 1800 rpm to 3600 rpm, and intermittent pressure is 2600 psi.

Parker HP2 pumps are a complete hydrostatic pumping system. They consist of:

• Two independently controlled, variable displacement, over-centre piston pumps
• Single input drive shaft
• 2.83 litre integral reservoir
• Shock and/or check valves
• Integral 20 micron filter
• Integral system cooling fan
• Direct drive possible, eliminate belts, pulleys

Specifications:

• SAE “B” two bolt mounting flange
• Weight: 15.4kg with oil
• Fluid viscosity: 9 cst minimum
• Fluid filtration: 20 micron
• Charge pump displacement: 3.2 cc/rev
• Operating temperature range: -29°C to 104°C (-20°F to 220°F)

Other features and benefits include:

• Single input, 20 mm Double D drive shaft
• Charge pump
• Vertical or horizontal input shaft capability

Contact us for further technical details and configuration options.
