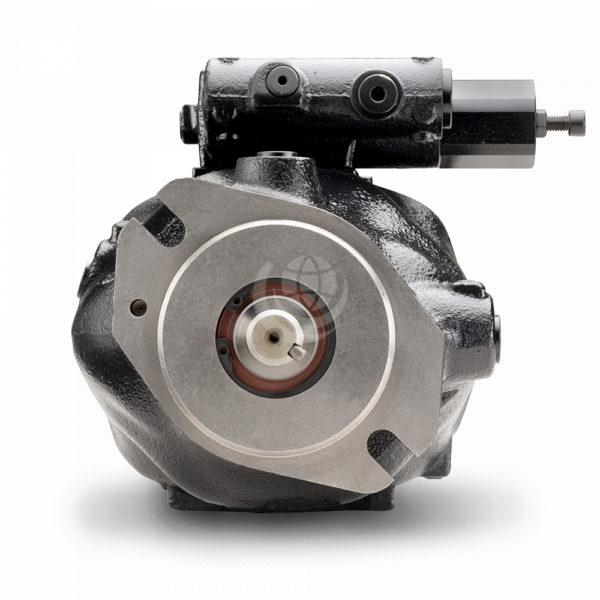

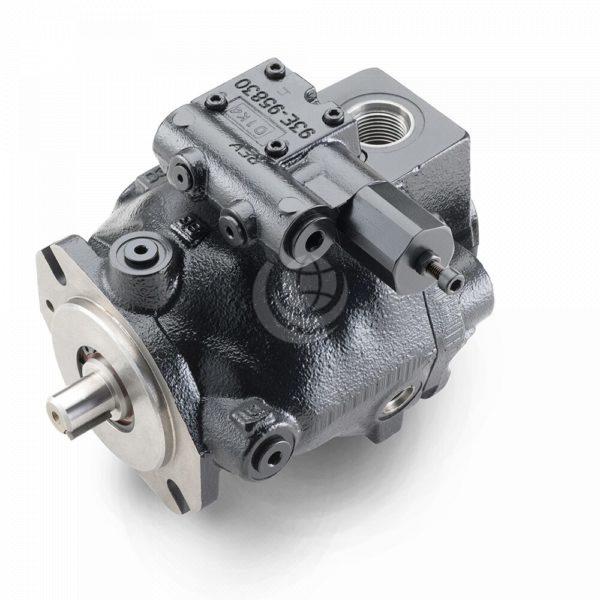

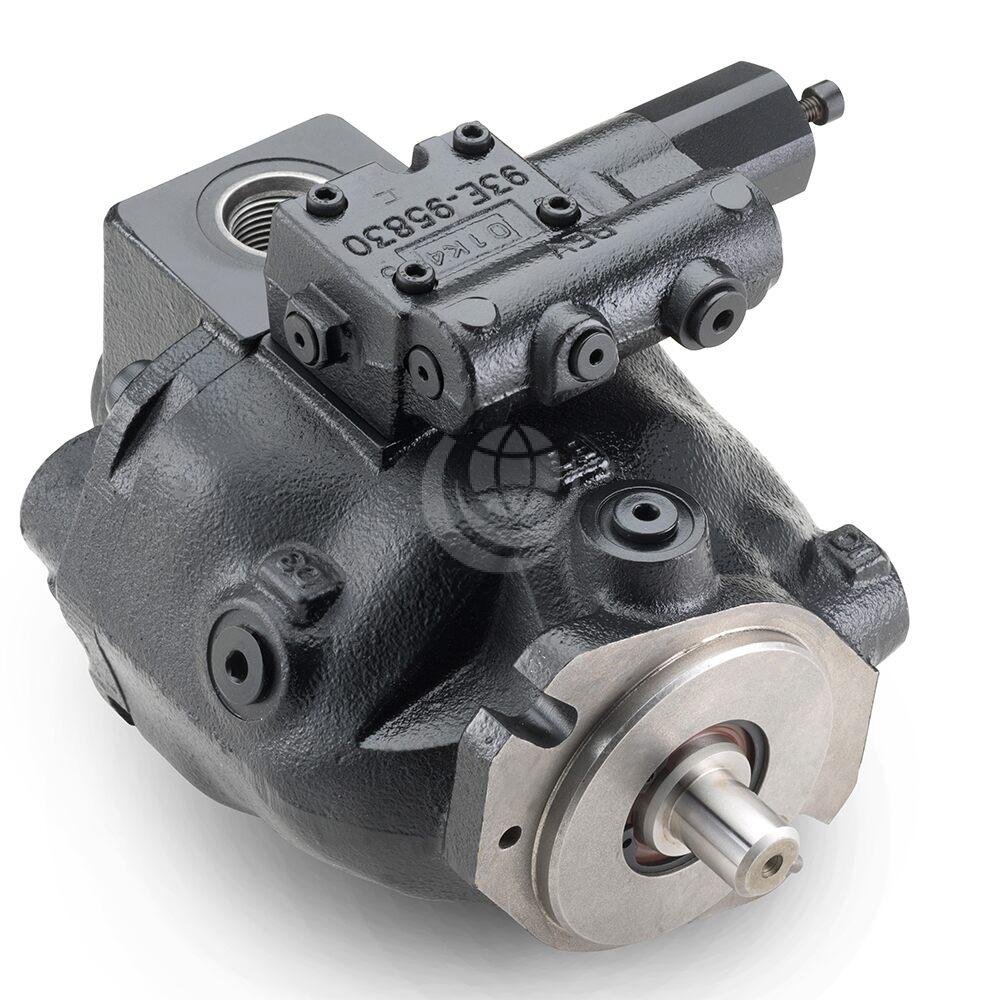

    Parker P1 Pump – Medium Pressure, Mobile

    Parker P1 Pump – Medium Pressure, Mobile

    Description

    The Parker P1 pump is a variable displacement, medium pressure, axial piston pump for open-circuit mobile applications. It has a robust cradle-bearing design, wide temperature range, full power thru-drive capability and an optional torque limiter.

    The P1 series is available with displacements: PL-18 | P1-28 | P1-45 | P1-60 | P1-75 | P1-100 | P1-140 – see the technical data tab for further details.

    Compact, quiet and efficient, P1 piston pumps deliver a continuous operating pressure of up to 4,060 psi (280 bar).

    Featuring unique “ripple chamber” technology, these pumps minimise pressure pulsations and decrease noise. With lower power consumption and reduced heat, the series ensures reliable performance and efficient control.

    Benefits of Parker P1 pumps include:

    • Compact overall package size
    • Quiet operation with low flow ripple to further reduce noise
    • Elastomer seals that eliminate gaskets and external leakage
    • High operating efficiency for lower power consumption and reduced heat generation
    • Simple hydraulic controls with “no-leak” adjustments
    • SAE and ISO standard mounting flanges and ports
    • Long life, tapered-roller shaft bearings
    • Long life, low friction, hydrostatically balanced swash plate saddle bearings
    • Full power through-drive capability
    • End or side inlet and outlet ports
    • Case drain ports for horizontal or vertical, shaft-up mounting
    • Optional minimum and maximum displacement adjustments
    • Easy to service

    Contact us for further technical details and configuration options.

    Download the Parker P1 Technical Catalogue >>>

    Parker P1 Pumps
    Model P1 018P1 028P1 045P1 060P1 075P1 100P1 140
    Maximum Displacement (cm³ / rev) 1828456075100140
    Outlet Presssure
    Continuous (bar / psi) 280 /4000280 /4000280 /4000280 /4000280 /4000280 /4000280 /4000
    Intermittent (bar / psi) 320 / 4500320 / 4500320 / 4500320 / 4500320 / 4500320 / 4500320 / 4500
    Peak (bar / psi) 350 / 5000350 / 5000350 / 5000350 / 5000350 / 5000350 / 5000350 / 5000
    P1 Maximum Speed
    1.3 bar absolute inlet (rpm)3600340031002800270025002400
    1.0 bar absolute inlet (rpm)3300320028002500240021002100
    0.8 bar absolute inlet (rpm)2900290024002200210019001800
    Minium Speed (rpm)600600600600600600600
    Inlet Pressure
    Maximum (bar/ psi) 10 / 14510 / 14510 / 14510 / 14510 / 14510 / 14510 / 145
    Rated (bar, absolute /psi)1 / 14.51 / 14.51 / 14.51 / 14.51 / 14.51 / 14.51 / 14.5
    Minium (bar, absolute / psi) 0.8 / 11.60.8 / 11.60.8 / 11.60.8 / 11.60.8 / 11.60.8 / 11.60.8 / 11.6
