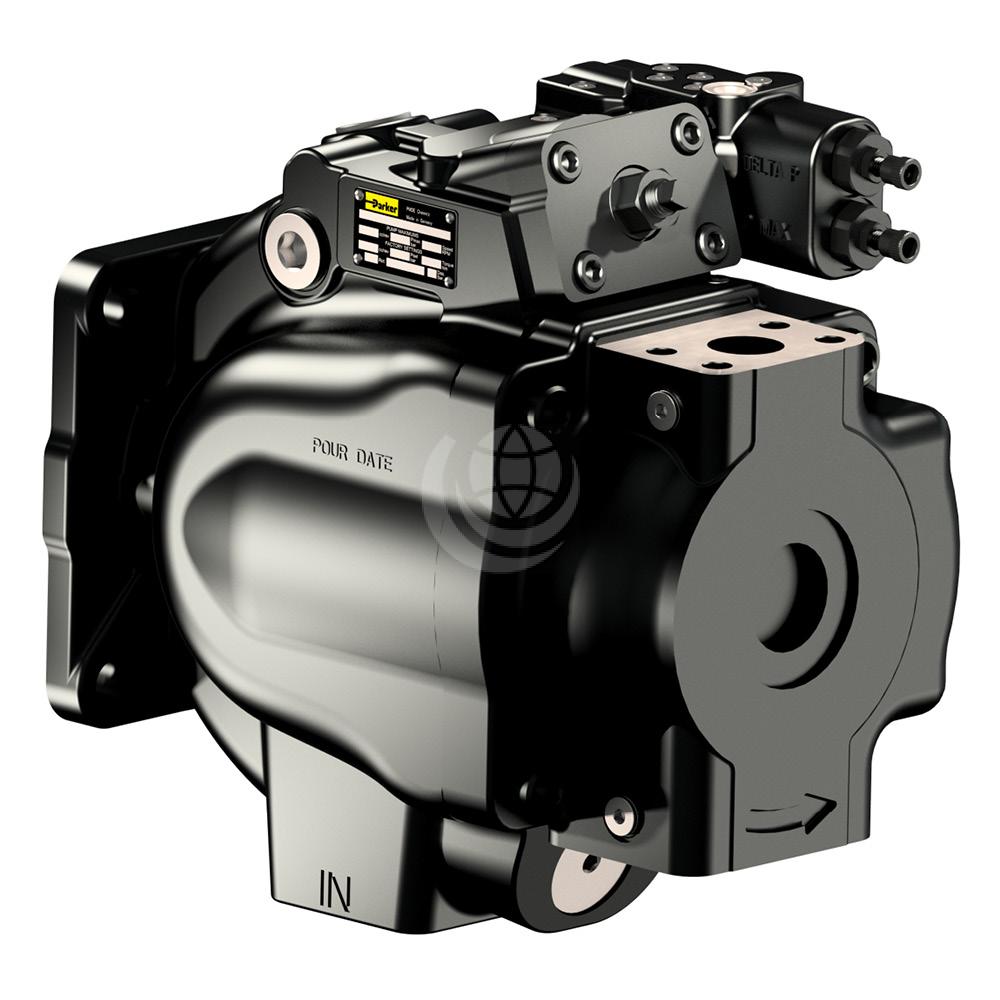

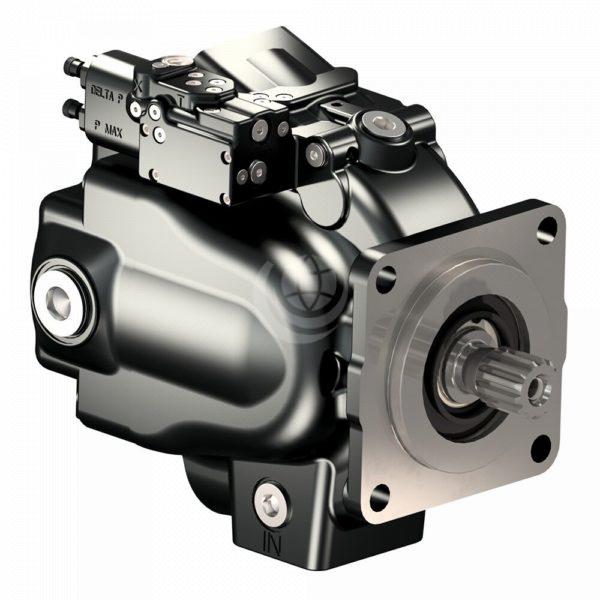

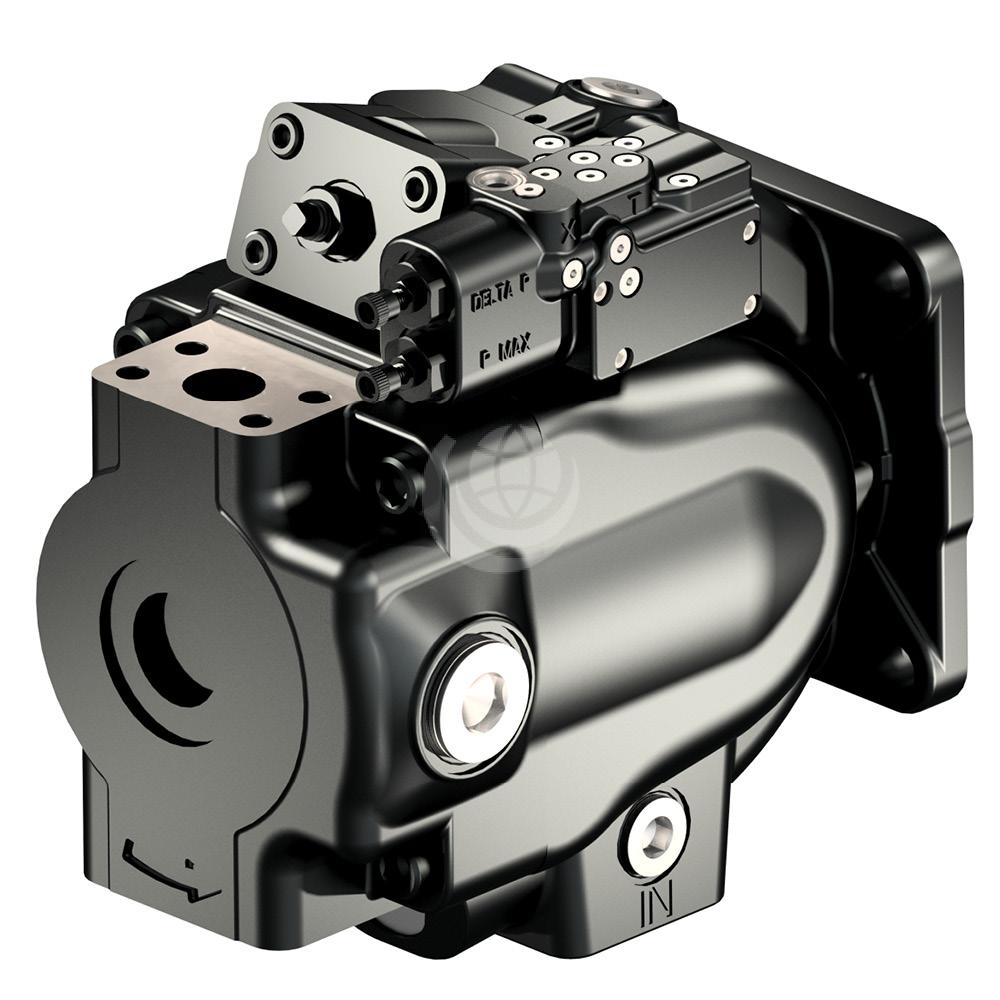

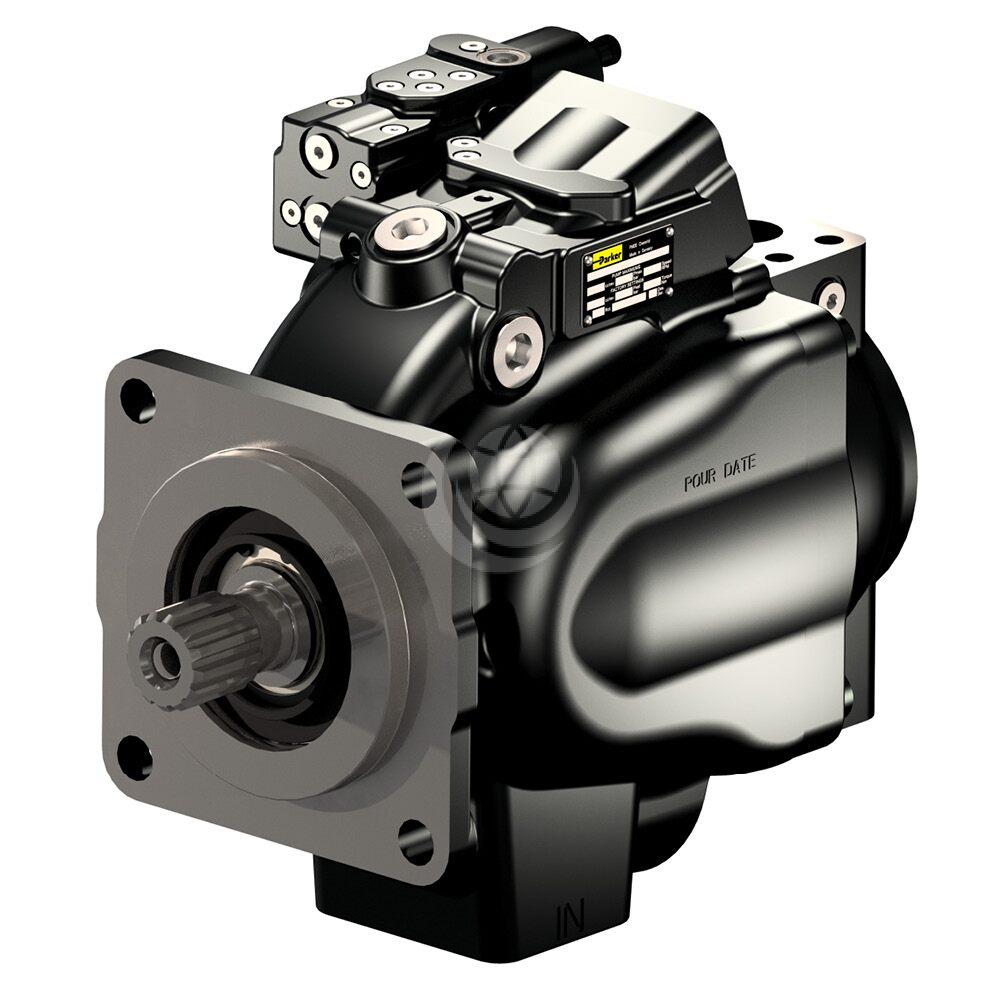

Parker P2 / P3 Pump – High Pressure, Mobile


Parker P2 P3 pumps are high pressure, variable, swashplate piston pumps for open circuit, mobile hydraulic systems. They are a good choice when it comes to cost-saving installation as well as high productivity and power density.

These pumps are available in a standard (P2) or supercharged (P3) version. Parker P2 pumps have displacements of 60 cc/rev – 145cc/rev, while P3 pumps have displacements of 105 cc/rev – 145 cc/rev. See the technical data tab for more details.

Features and benefits:

  • Dedicated envelope design and unique port layout
  • High self-priming speed
  • Standard integrated pre-compression volume
  • Heavy duty approval (size 105 and 145) for increased power density
  • Cost saving installation by direct PTO mount
  • High productivity by maximized output flow
  • High altitude operation capability
  • Low noise level and reduced flow ripple

Contact us for further technical details and configuration options.

Download the Parker P2 P3 Technical Catalogue >>>

Frame SizeP2P2P2P2P3P3
Displacement ( cm³/rev)6075105145105145
Self-priming speed at 1 bar abs inlet pressure (rpm)280025002300220026002500
Nominal pressure (bar)320320350350350350
Minimum inlet pressure, absolute (bar)
Maximum inlet pressure, absolute (bar)101010101.51.5
Maximum case drain pressure, absolute (bar)
Minimum outlet pressure, absolute (bar) 151515151515
Noise level at full flow, 1800 rpm and 250 bar (dbA) 747678807880
Weight with load sense control (kg)374463786276
