    Parker PAVC Piston Pump – Medium Pressure

    Parker PAVC Piston Pump – Medium Pressure

    • Description
    • Technical Data

    Description

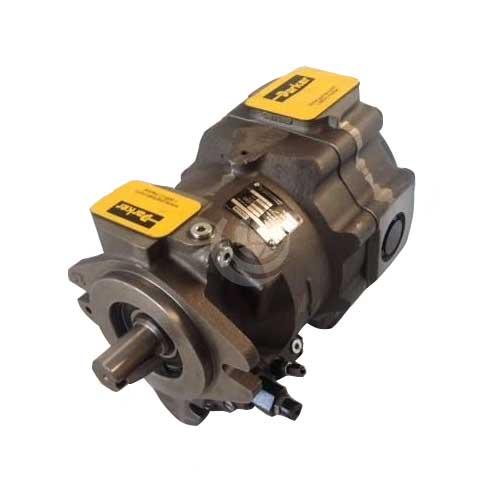

    Parker PAVC pumps are medium pressure, super-charged piston pumps.

    They are available in 4 displacements, from 33cc/rev to 100cc/rev: PAVC33 | PAVC38 | PAVC65 | PAVC100 – see the technical details tab for specifications.

    Features of Parker PAVC pumps include:

    • High strength cast-iron housing
    • Built-in supercharger ensures high speed capability up to 3000 rpm
    • Sealed shaft bearing
    • Two piece design for ease of service
    • Cartridge type controls ‑ field changeable
    • Replaceable bronze clad port plate
    • Airbleed standard for quick priming
    • Hydrodynamic cylinder barrel bearing
    • Thru-shaft (PAVC100 only)
    • Full pressure rating on most water glycol fluids
    • Pump case and shaft seal are subjected to inlet pressure only
    • Filter and/or cool drain line 7 bar (100 psi) maximum
    • Controls: pressure compensation | load-sensing | power (torque) limiting | power and load-sensing| remote pressure compensation | adjustable maximum volume stop | low pressure standby

    Contact us for further technical details and configuration options.

    Download the Parker PAVC Technical Catalogue >>>



    ModelPAVC33PAVC38PAVC65PAVC100
    Displacement (cm³/rev)333865100
    Pump delivery @21 bar (300psi)
    litres/min @ 1200rpm39.44578.7119.6
    litres/min @ 1800rpm5967.8118.1179.8
    Maximum operating speed (rpm)3000300030002600
    Maximum continuous pressure (bar / psi)207 / 3000207 / 3000207 / 3000207 / 3000
