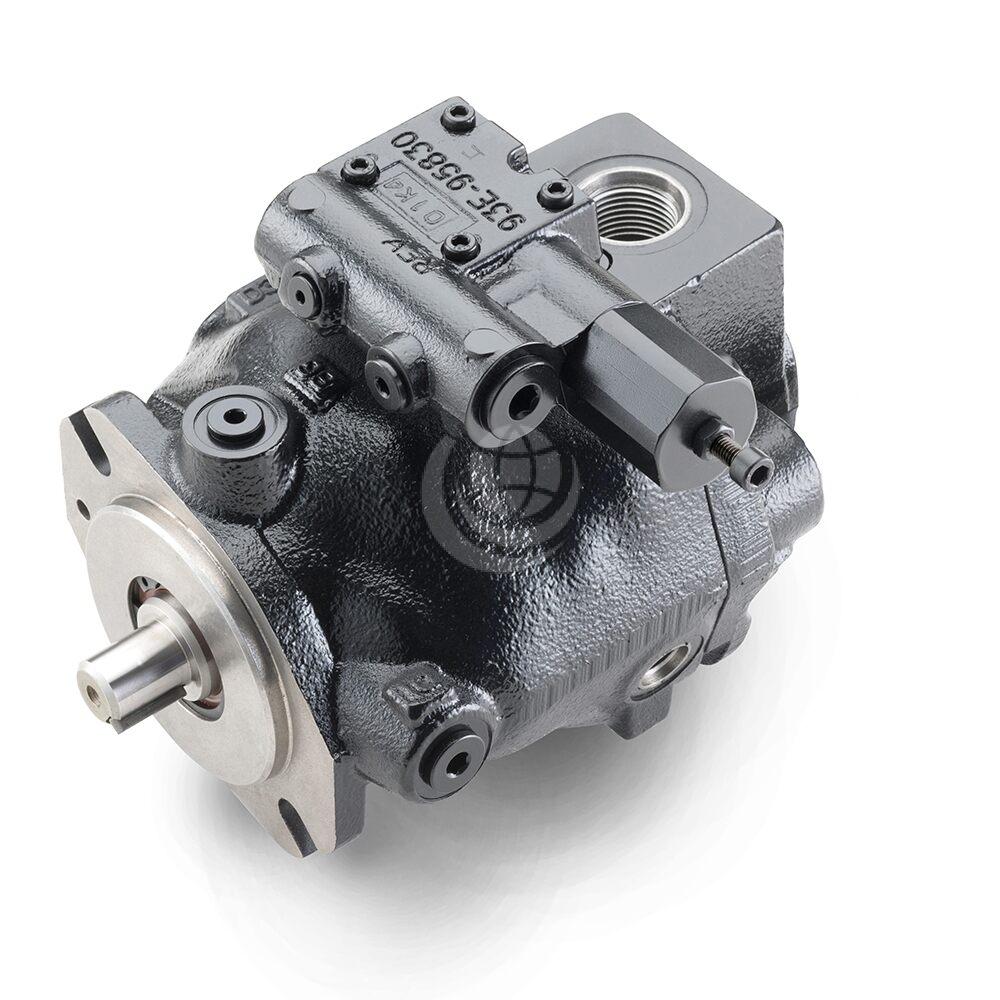

Parker PD Pump – Medium Pressure, Industrial

Description

The Parker PD pump is a variable displacement, medium pressure, axial piston pump for open-circuit mobile applications. It has a robust cradle-bearing design, wide temperature range, full power thru-drive capability and an optional torque limiter.

The PD series is available with displacements: PD-18 | PD-28 | PD-45 | PD-60 | PD-75 | PD-100 | PD-140 – see the technical data tab for further details.

Compact, quiet and efficient, PD piston pumps deliver a continuous operating pressure of up to 4,060 psi (280 bar).

Featuring unique “ripple chamber” technology, these pumps minimise pressure pulsations and decrease noise. With lower power consumption and reduced heat, the series ensures reliable performance and efficient control.

Benefits of Parker PD pumps include:

  • Compact overall package size
  • Quiet operation with low flow ripple to further reduce noise
  • Elastomer seals that eliminate gaskets and external leakage
  • High operating efficiency for lower power consumption and reduced heat generation
  • Simple hydraulic controls with “no-leak” adjustments
  • SAE and ISO standard mounting flanges and ports
  • Long life, tapered-roller shaft bearings
  • Long life, low friction, hydrostatically balanced swash plate saddle bearings
  • Full power through-drive capability
  • End or side inlet and outlet ports
  • Case drain ports for horizontal or vertical, shaft-up mounting
  • Optional minimum and maximum displacement adjustments
  • Easy to service

Contact us for further technical details and configuration options.

Download the Parker PD Technical Catalogue >>>

Parker PD Pumps
Model PD 018PD 028PD 045PD 060PD 075PD 100PD 140
Maximum Displacement (cm³ / rev) 1828456075100140
Outlet Presssure
Continuous (bar / psi) 280 /4000280 /4000280 /4000280 /4000280 /4000280 /4000280 /4000
Intermittent (bar / psi) 320 / 4500320 / 4500320 / 4500320 / 4500320 / 4500320 / 4500320 / 4500
Peak (bar / psi) 350 / 5000350 / 5000350 / 5000350 / 5000350 / 5000350 / 5000350 / 5000
PD Maximum Speed
1.0 bar absolute inlet (rpm)1800180018001800180018001800
0.8 bar absolute inlet (rpm)1800180018001800180018001800
Minium Speed (rpm)600600600600600600600
Inlet Pressure
Maximum (bar/ psi) 10 / 14510 / 14510 / 14510 / 14510 / 14510 / 14510 / 145
Rated (bar, absolute /psi)1 / 14.51 / 14.51 / 14.51 / 14.51 / 14.51 / 14.51 / 14.5
Minium (bar, absolute / psi) 0.8 / 11.60.8 / 11.60.8 / 11.60.8 / 11.60.8 / 11.60.8 / 11.60.8 / 11.6
