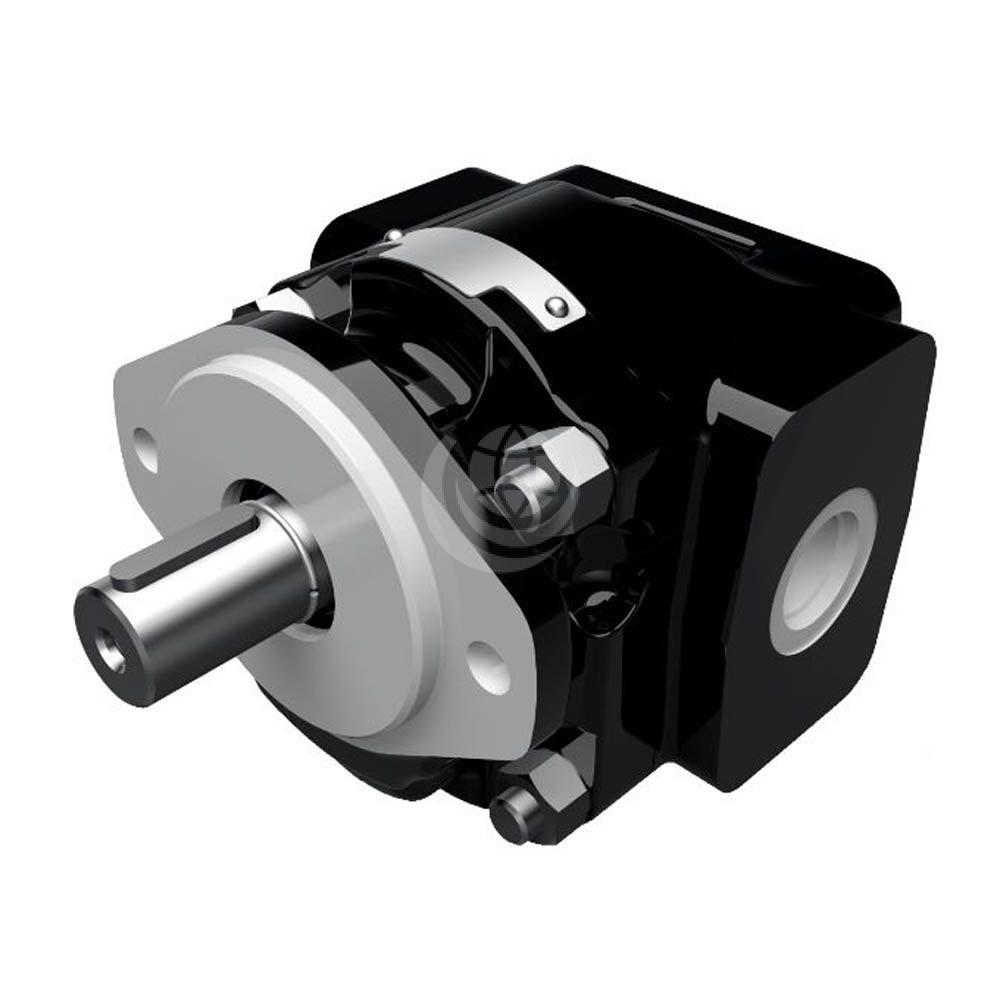

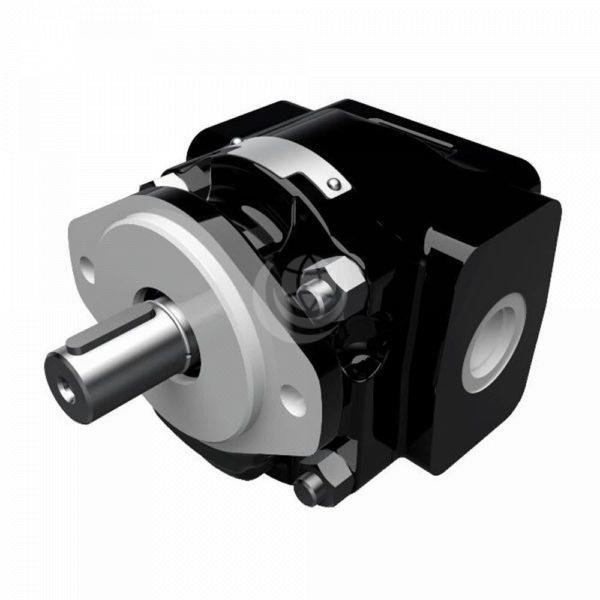

    Parker Commercial PGM620 Motor – Cast Iron Gear Motor

    Parker Commercial PGM620 Motor – Cast Iron Gear Motor

    Description

    Formerly made by Commercial Hydraulics before they joined the Parker Group, Parker PGM620 motors are fixed displacement gear motors. They provide high efficiency, high performance and high power density due to their interlocking two-piece cast iron construction.

    Parker PGM620 series motors are available in 12 displacements from 16cc/rev to 52cc/rev: PGM620-0160 | PGM620-0190 | PGM620-0230 | PGM620-0260 | PGM620-0290 | PGM620-0330 | PGM620-0360 | PGM620-0370 | PGM620-0410 | PGM620-0440 | PGM620-0500 | PGM620-0520

    Maximum continuous pressures are up to 275 bar and speeds are up to 3500 rpm – see the technical details tab.

    Features and benefits:

    • Two-piece, interlocking body construction for high efficiency and high pressure
    • Cast iron pumping sections for durability
    • Journal bushings for long life
    • Pressure balanced thrust plates for high efficiency
    • 12 tooth gears, bronze balance plates
    • High power through-drive capability
    • Wide range of integral valves for power steering, power brakes, fan drivers and implement hydraulics
    • Load-sense and solenoid-operated unloading valves
    • Bi-directional

    Contact us for further technical details and configuration options.

    Download the Parker PGM620 Technical Catalogue >>>

    Parker PGP620 Pumps - Standard Displacements - Single Unit
    PGP / PGM 620 CodeDisplacement (cm³/rev)Max Continuous Pressure (bar)Minium Speed (rpm)Maximum Speed (rpm)
    0160162755003500
    0190192755003500
    0230232755003500
    0260262755003500
    0290292755003500
    0330332755003500
    0360362505003500
    0370372505003500
    0410412205003500
    0440442105003500
    0500502105003000
    0520522105003000
