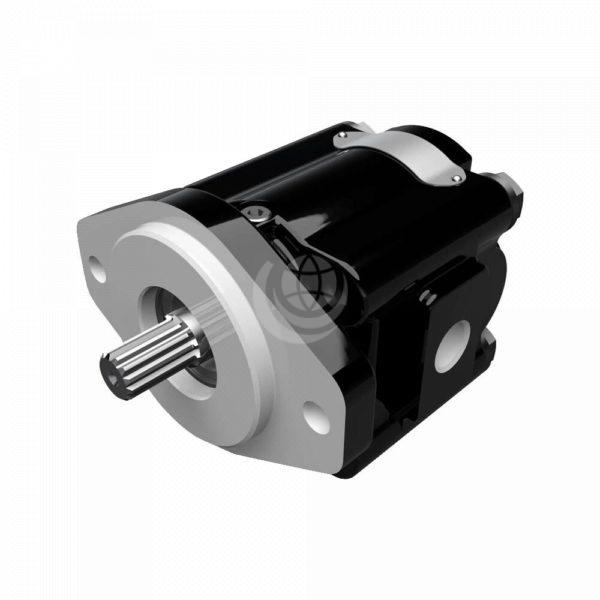

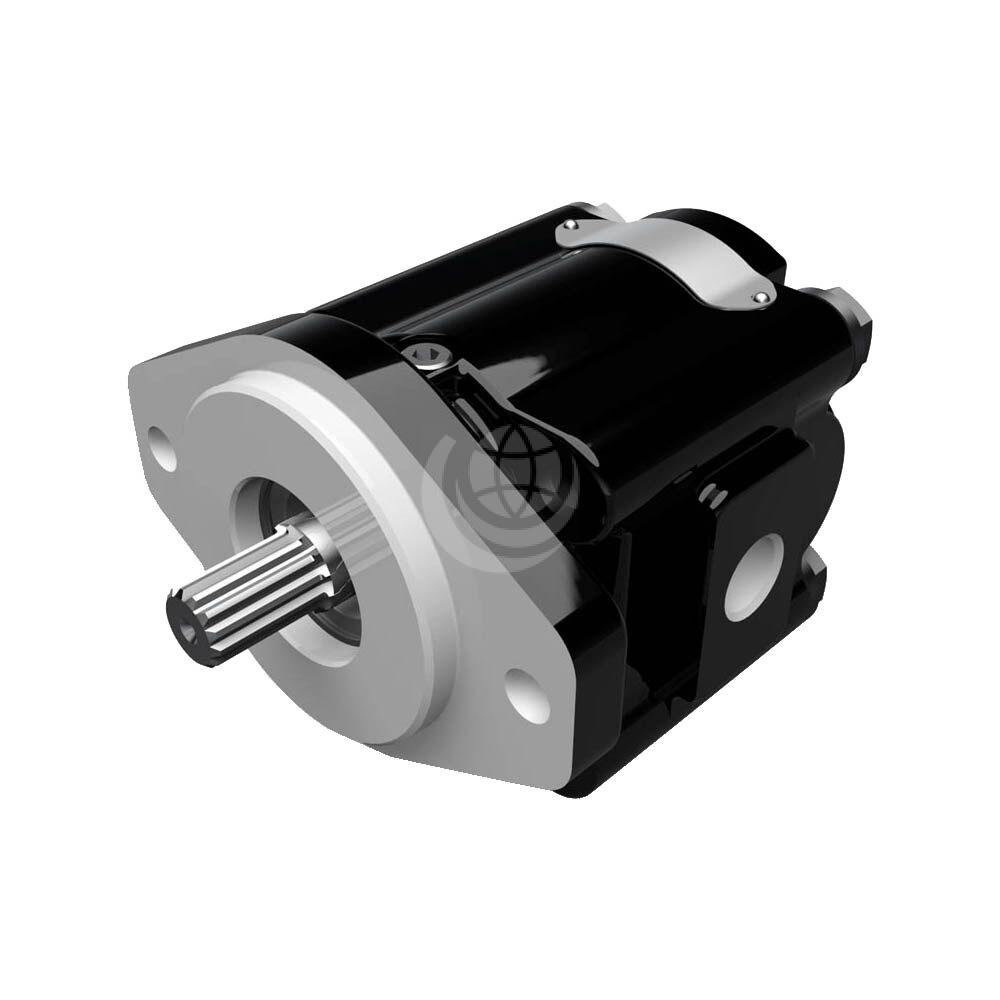

    Parker PGM030 PGM031 Cast Iron Gear Motor


    Parker PGM030 PGM031 motors are fixed/positive displacement gear motors. They offer high durability and resistance to oil contamination due to their cast iron, roller bearing construction. They are available as single, two-speed, or winch motors.

    Manufactured with hi-tensile grey iron, these motors have a wide variety of drive shafts designed for high-torque applications; unique pressure-balanced thrust plates contribute to optimised performance.

    Other features and benefits include:

    • Three-piece cast iron construction for distribution flexibility and durability
    • Balanced thrust plates minimise friction and leakage
    • Roller bearings for durability
    • Multiple sections available

    Formerly made under the Commercial Hydraulics name, technical data for the Parker PGM030 PGM031 series is as follows:

    • Displacements from 16.2 cc/rev to 64.6 cc/rev
    • Speeds up to 2400 rpm
    • Operating pressures up to 200 bar (3,000 psi)
    • Flow range to 145.4 litres/minute per section
    • Volumetric efficiencies up to 95%
    • Clockwise, counter-clockwise and bi-rotational motors available
    • SAE and SI shafts, flanges and porting available
    • Extensive valve options: pressure relief | anti-cavitation | cross port relief | solenoid unloading | proportional relief |

    We also offer a range of completely interchangeable, direct equivalents to the Parker PGM030 PGM031 series. Built and tested here in the UK, you can be assured of a quality product that can more often than not be dispatched within 24 hours.

    Contact us for technical details and configuration options.

    Download the Parker PGM030 PGM031 Technical Catalogue >>>
