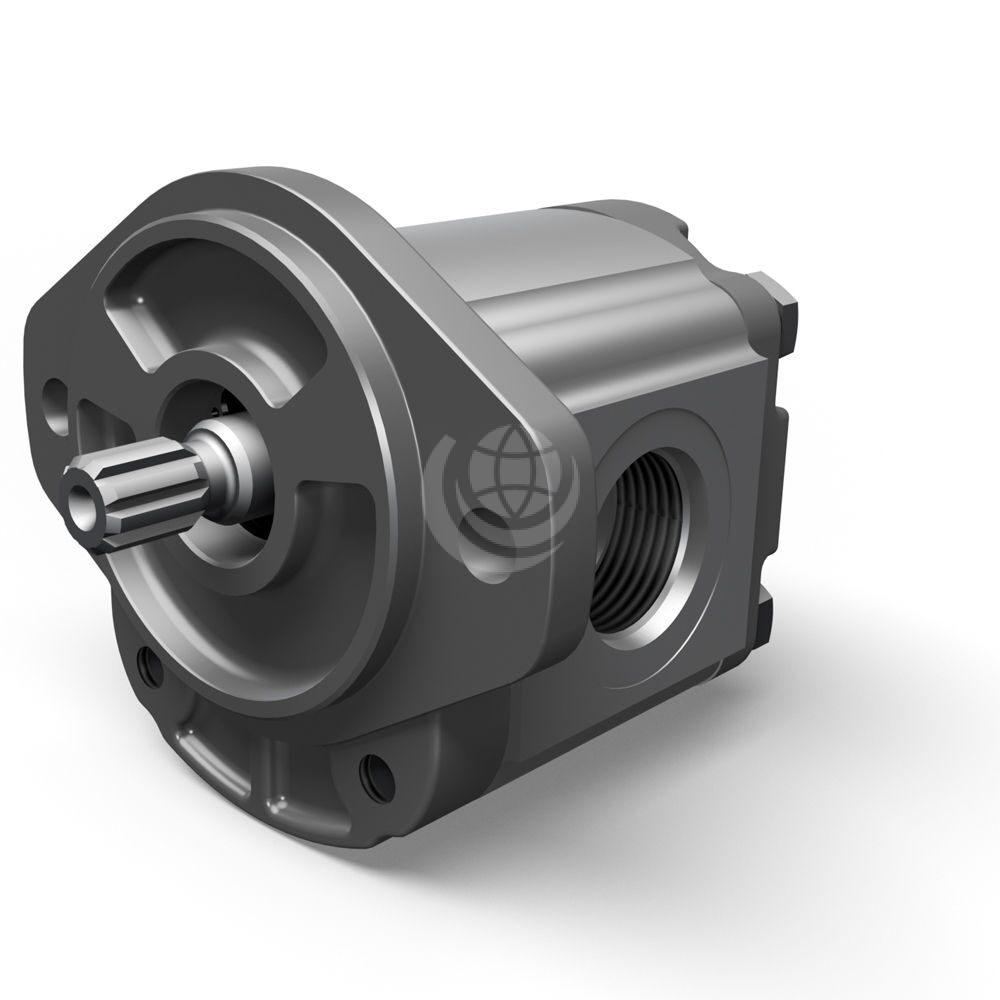

    Parker PGP511 Pump – Group 2, Aluminium Gear Pump

    Parker PGP511 Pump – Group 2, Aluminium Gear Pump

    • Description
    • Technical Data

    Description

    Parker PGP511 pumps are fixed displacement, aluminium gear pumps offering high performance and high power density. These pumps were formerly made by Commercial Intertech and were known as their ‘P11, Group 2’ pumps, before Commercial Intertech joined the Parker Group.

    They are ideal for aerial, agriculture, construction, forestry, materials handling, and turf equipment applications.

    PGP511 pumps are available as a standard pump, clutch pump, tandem pump or as a pump with a priority flow valve including primary circuit relief valve.

    Single unit Parker PGP511 series pumps are available in 10 displacements from 6cc/rev to 33cc/rev: PGP511A-0060 | PGP511A-0080 | PGP511A-0100 | PGP511A-0110 | PGP511A-0140 | PGP511A-0160 | PGP511A-0190 | PGP511A-0230 | PGP511A-0270 | PGP511A-0330

    Maximum continuous pressures are up to 250 bar and speeds up to 3,500 rpm – see the technical details tab.

    Features and benefits:

    • Twelve tooth gear profile
    • High efficiency and low noise at high operating pressures
    • Three-piece construction for distribution flexibility
    • Aluminum pumping sections for light weight
    • Journal bushings for long life
    • Pressure-balanced thrust blocks for high efficiency
    • Multiple sections available
    • SAE shafts, flanges and porting available
    • Clockwise, counter-clockise and bi-rotational pumps are available.

    Contact us for further technical details and configuration options.

    Download the Parker PGP511 Technical Catalogue >>>

    PGM 511 CodeDisplace-ment (cm³/rev)Max Cont. Pressure (bar)Minium Speed (rpm)Maximum Speed (rpm)
    006062505003500
    008082505003500
    0100102505003500
    0110112505003500
    0140142505003500
    0160162505003500
    0190192505003250
    0230232255002750
    0270271905002350
    0330331555002000
