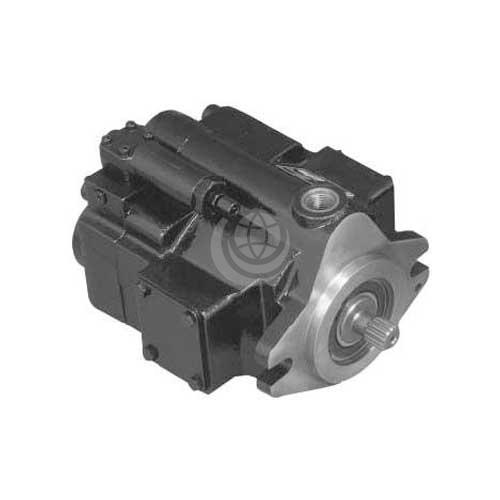

Parker PVP Piston Pump
- Description
- Technical Data
Description
Parker PVP pumps are variable displacement piston pumps.
They are available in displacements from 16cc/rev to 48cc/rev: PVP16 | PVP23 | PVP33 | PVP41 | PVP48 – see the technical details tab for specifications.
Features of Parker PVP pumps include:
- High strength cast-iron housing
- Fast response times
- Two piece housing for ease of service
- Metric pilot, shaft and ports available
- Replaceable bronze clad port plate
- Thru-shaft capability
- Low noise levels
- Replaceable piston slipper plate
- Controls: pressure compensation | load sensing | horsepower limiting | horsepower and load-sensing | remote pressure compensation | adjustable maximum volume stop low pressure standby
Contact us for further technical details and configuration options.
Download the Parker PVP Technical Catalogue >>>
| Model | PVP16 | PVP23 | PVP33 | PVP41 | PVP48 |
|---|---|---|---|---|---|
| Displacement (cm³/rev) | 16 | 23 | 33 | 41 | 48 |
| Pump delivery @21 bar (300psi) | |||||
| litres/min @ 1200rpm | 19.7 | 28 | 39.4 | 49.2 | 57.6 |
| litres/min @ 1800rpm | 29.5 | 42 | 59 | 73.8 | 86.4 |
| Maximum operating speed (rpm) | 3000 | 3000 | 3000 | 2800 | 2400 |
| Maximum continuus pressure (bar / psi) | 248 / 3600 | 248 / 3600 | 248 / 3600 | 248 / 3600 | 248 / 3600 |
