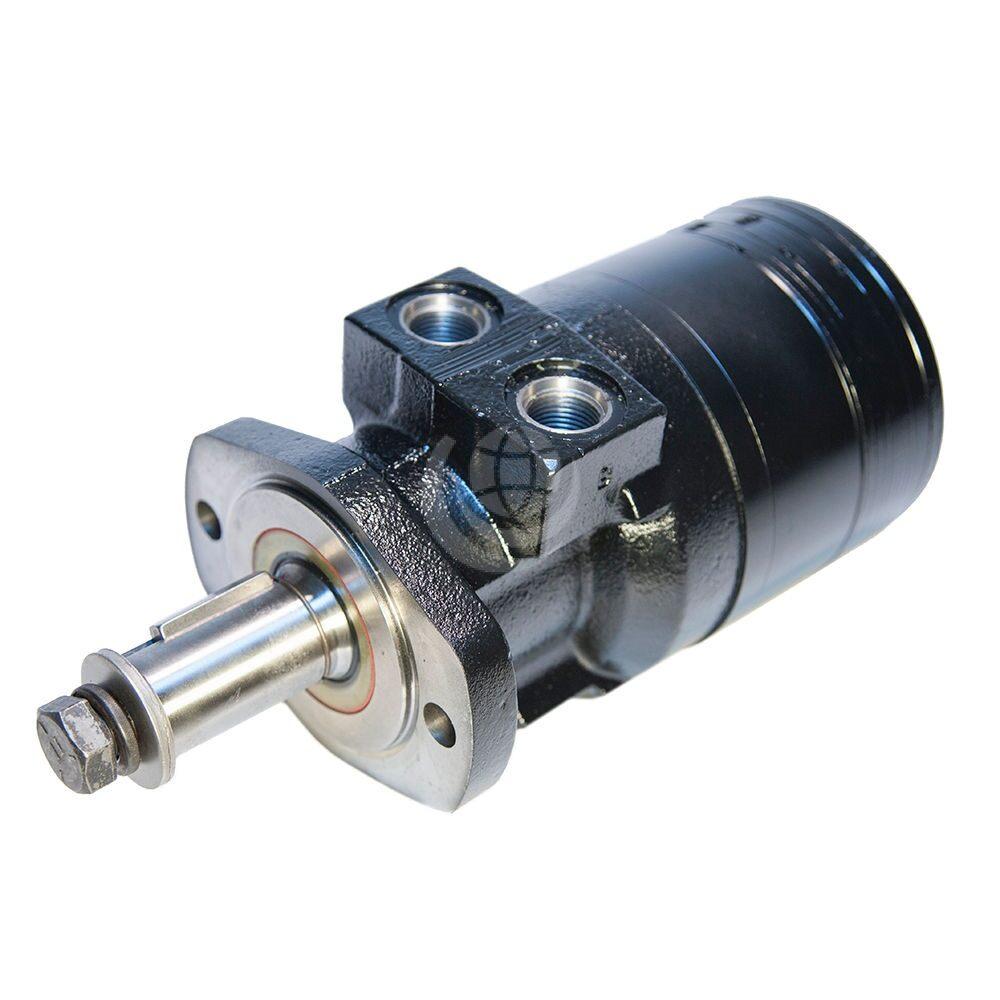

    Parker TG Series – Medium Duty Gerotor Motor

    Parker TG Series – Medium Duty Gerotor Motor

    Description

    The Parker TG Series Torqmotor™ is a durable, low speed, high torque motor that is ideal for medium duty applications.

    With increased power and durability, the TG Series motor is available in flange or wheel mounts. It has superior side load capacity – up to 16013 N dynamic side load at the key.

    The Parker TG motor is available in 14 displacements from 140 cc/rev to 959 cc/rev: TG0140 | TG170 | TG0195 | TG0240 | TG0280 | TG0310 | TG0335 | TG0360| TG0405 | TG0475 | TG0530 | TG0625 | TG0785 | TG0960

    Features and benefits include:

    • Intermittent pressures up to 280 bar
    • Torques to 1490 Nm
    • Shaft sizes to 34.9 mm nominal
    • Robust construction for longer life
    • Continuous oil flow across internal splines for longer life
    • Superior side load capacity
    • Smooth, extra low speed operation
    • High pressure shaft seal as standard
    • Innovative design eliminates the need for a case drain

    Contact us for further technical details and configuration options.

    TG Motor01400170019502400280031003350360040504750530062507850960
    Displacement (cm³/rev) 141169195238280310337360405477528623786959
    Max speed (rev/min)660554477393334303277259232237213182143118
    Max cont. oil flow (l/min) 7676767676767676767676767676
    Max int. oil flow (l/min)959595959595959595114114114114114
    Max cont. pressure (bar) 20720720720720720720717217213813812110369
    Max int. pressure (bar)276276276276276276276241241207172155138103
    Max supply pressure (bar)300300300300300300300300300300300300300300
    Max cont. torque (Nm)3904765566777969249648949428879839861044773
    Max int. torque (Nm)5306467539131073122912971254134213721253129114281268
