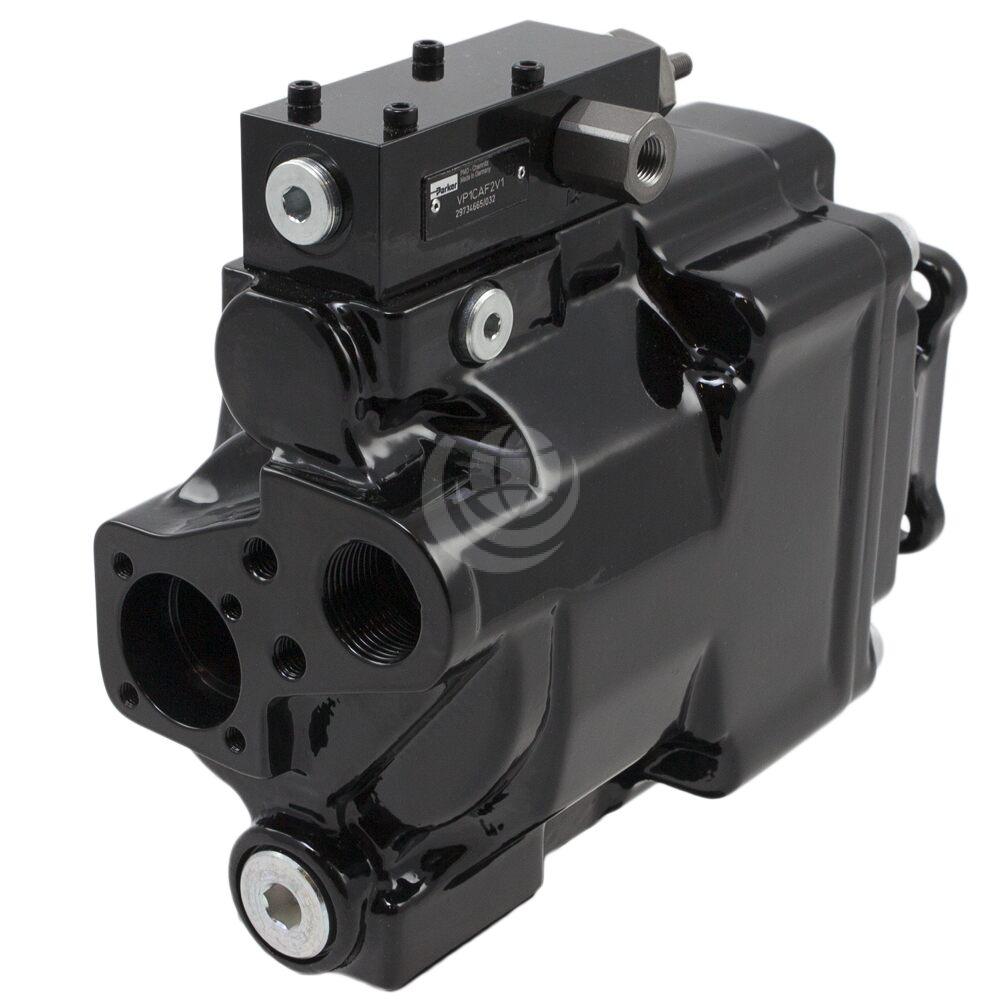

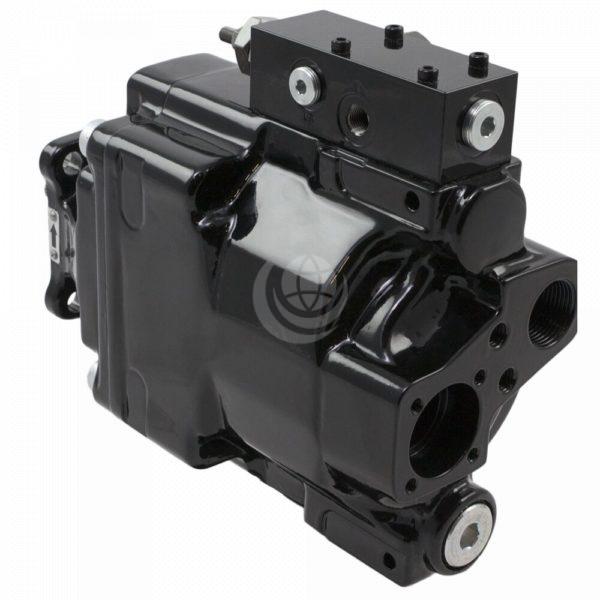

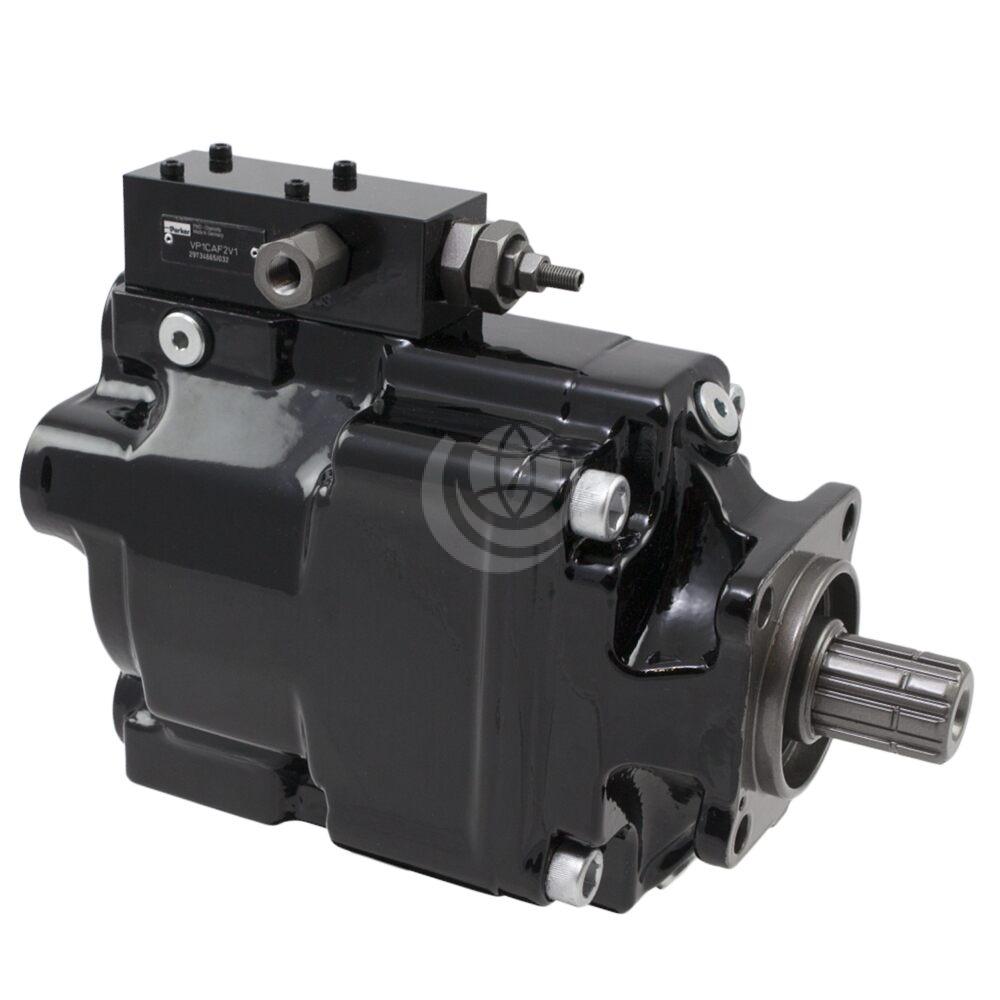

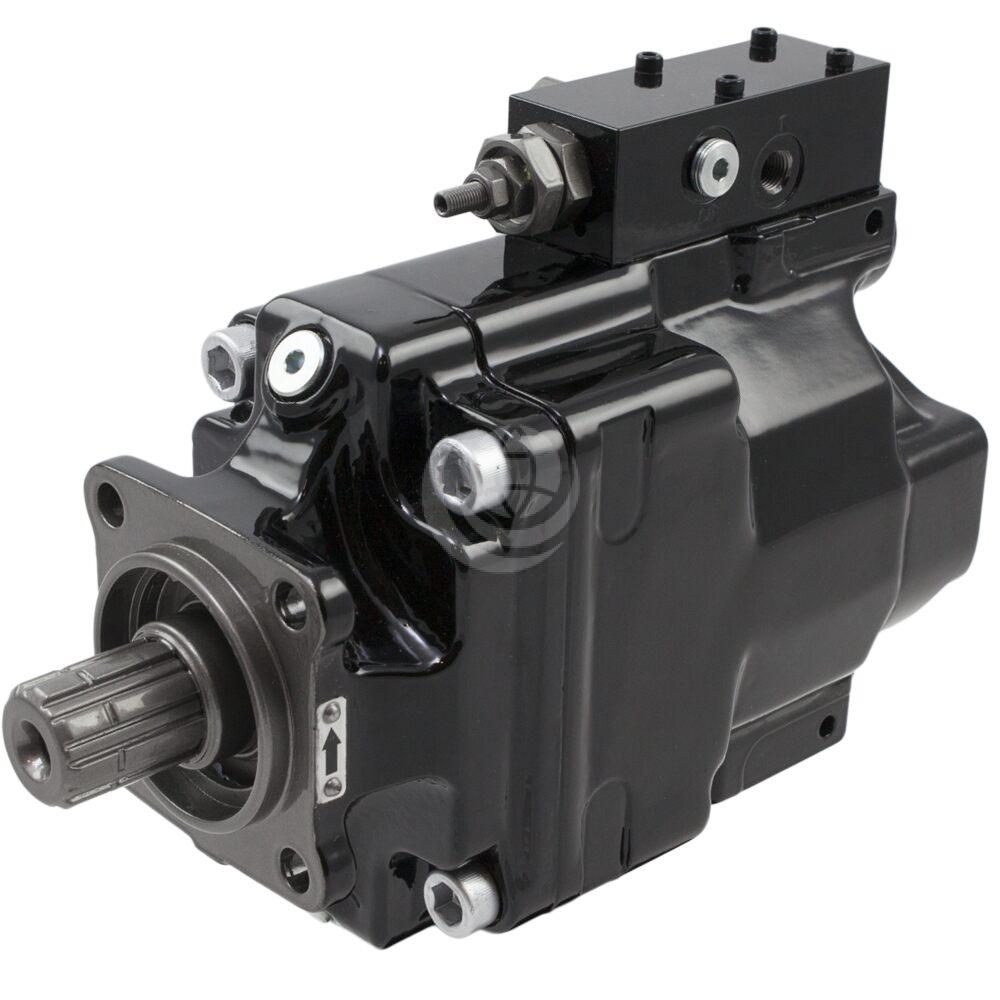

Parker VP1 Piston Pump – Variable Displacement

Description

The Parker VP1 pump has a robust design that provides reliable performance for the most demanding truck applications. It can be close-coupled to a gearbox PTO (power take-off) or to a coupling independent PTO (e.g. an engine PTO). These pumps have operating pressures up to 420 bar (6,100 psi) and speeds up to 3000 rpm.

The Parker VP1 pump is available in 3 displacement sizes: VP1-095 | VP1-110 | VP1-130 – see the technical details tab for specifications.

VP1 pumps provide the hydraulic system with the correct amount of fluid at precisely the right moment – effectively reducing energy consumption and heat generation. This means a smoother and quieter hydraulic system with much reduced impact on the environment.

The pump design permits a large 20° angle between piston and slipper shoe/swash-plate, providing compact outer dimensions.

Features:

  • Variable displacement
  • Low noise level
  • High power-to-weight ratio
  • Compact and light
  • Highly efficient
  • Economical
  • Sturdy design
  • Withstands low temperatures
  • Shaft end spline: Spline SAE C 14T 12/24 DP
  • Mounting flange: SAE C 4 bolt flange

Contact us for further technical details and configuration options.

Download the Parker VP1 Technical Catalogue >>>

Size VP1VP1-095VP1-110VP1-130
Displacement (cm³/rev)95110128
Maximum operating pressure
Continuous (bar / psi) 400 / 5800400 / 5800400 / 5800
Intermittent (bar /psi) 420 / 6090 420 / 6090 420 / 6090
Self-priming speed
2" suction line12501100900
2 1/2" suction line175015001300
3" suction line220021001900
Minium speed (rpm)500500500
Max speed unloaded (rpm)
(in bypass mode, no flow) 300030003000
Weight (kg) 272727
