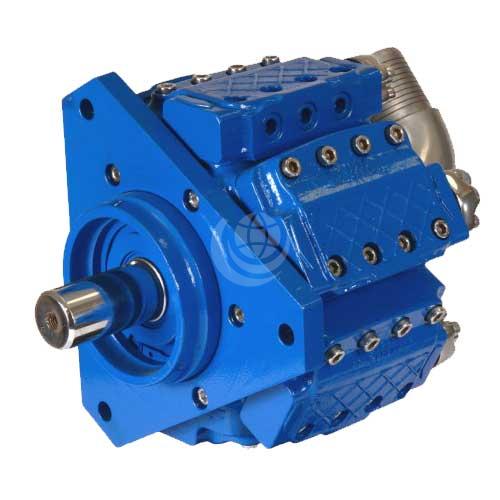

    Poclain PL6H Axial Piston Pumps

    Poclain PL6H Axial Piston Pumps

    Description

    Poclain PL6H pumps are heavy duty, open loop and fixed displacement reciprocating axial piston pumps. They have 6 independent flows, or outputs.

    There are 9 displacements from 41.2 cc/rev to 296 cc/rev:  PL6H14-175 | PL6H14-200 | PL6H14-220 | PL6H14-250 | PL6H14-285 | PL6H14-320 | PL6H20-580 | PL6H20-650 | PL6H20-740

    Across the series, maximum continuous speed ranges from 1800 to 2800 rpm, with intermittent speeds from 2000 rpm to 3200 rpm. Continuous pressure is 350 bar (5076 psi), with intermittent pressure 450 bar (6527 psi).

    Maximum continuous power is 171 kW to 465 kW and intermittent is 252 kW to 666 kW.

    Download the Poclain PL6H Technical Catalogue >>>

    Contact us for further technical details and configuration options.
