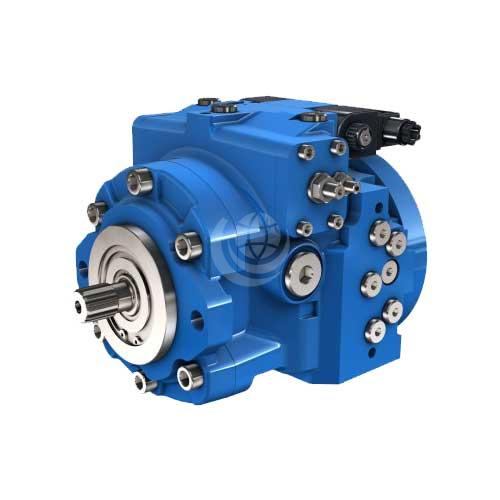

Poclain PM30 / PMe30 Axial Piston Pumps

Poclain PM30 pumps and PMe30 (with electronics) are variable displacement axial piston pumps with a swash plate design. They are for use in closed circuit hydrostatic transmissions.

These pumps are equipped with high pressure relief valves and can be delivered with auxiliary gear pumps; they are are available as single or tandem pumps.

They provide a continuously variable flow rate between zero and maximum in forward and reverse direction. Flow rate is proportional to rotation speed and the swashplate angle.

A charge pump can also be used to keep the circuit pressurised. This avoids risk of cavitation and ensures a good performance of the transmission.

Several types of control are available: hydraulic, electrical and electro-proportional. Hydraulic and electro-proportional controls can also be equipped with feedback device.

Other options include: a flushing valve and filter on the charge pressure line.

Poclain PM30 and PMe30 pumps are both available in 4 sizes from 25 cc/rev to 35 cc/rev: PM30-25 | PM30-28 | PM30-30 | PM30-35 | PMe30-25 | PMe30-28 | PMe30-30 | PMe30-35

Theoretical flow across the pump series ranges from 90 to 123.12 litres/minute.

Download the Poclain PM30 / PMe30 Technical Catalogue >>>

Contact us for further technical details and configuration options.
