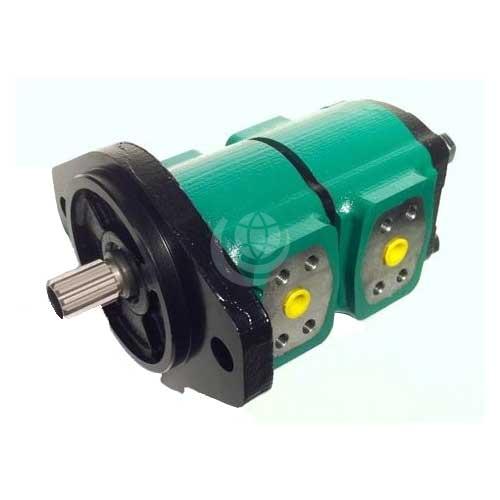

Salami 2PGE Cast Iron Gear Pump

The Salami 2PGE cast iron gear pump has an integral gear with 12 teeth and double shaft seals. The pump is available in the following model types: 16, 19, 22.5 and 26.

Technical specifications of the Salami 2PGE Gear Pump and motor:

• displacements range from 16.6cm3 / rev to 25.8 cm3 / rev
• working pressure at P1 ranges from 270 bar / 3915 psi to 230 bar / 3335 psi
• intermittent pressure at P2 ranges from 300bar / 4350 psi to 260 bar / 3800 psi
• peak pressure at P2 ranges from 320 bar / 4650 psi to 280 bar / 4060 psi
• maximum speed at P2 ranges from 3000 rpm to 2500 rpm
• minimum speed at P1 is 500 rpm

Contact us for further technical details and configuration options.
