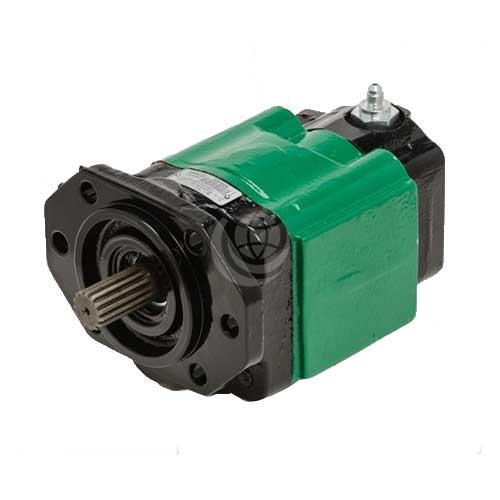

Salami PG331 series cast iron gear pumps share the features of PG330 series, in terms of dimensions and working conditions. The pumps are available as a single pump, double pump assembly, or triple or quadruple pump assembly. The Salami PG331 series is available in the following model types: 23, 28, 34, 40, 47, 55, 64, 72 and 80.
- displacements range from 23.4cm3 / rev to 80.6 cm3 / rev
- working pressure at P1 ranges from 260 bar / 3800 psi to 200 bar / 2900 psi
- weight ranges from 12.77kg to 17.69kg
- intermittent pressure at P2 ranges from 280bar / 4000 psi to 220 bar / 3200 psi
- peak pressure at P2 ranges from 300 bar / 4350 psi to 240bar / 3500 psi
- maximum speed at P2 ranges from 3000 rpm to 2500 rpm
- maximum speed at P1 ranges from 400 rpm to 350rpm.
Contact us for further technical details and configuration options.
