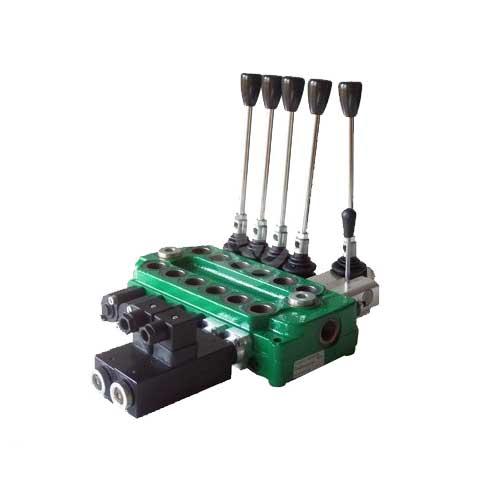

Salami VDM065 Cast Iron Monoblock Valve

Directional Monoblock Valves – Cable Operated / Electronically Operated / Lever Operated / Oil Operated

Description

The Salami VDM065 series is constructed in cast iron monoblock, from 1 to 7 working sections.

General features:

  • Power beyond (HPCO) configuration
  • Several types of spool – double, single acting, spool motor, float position, regenerative position etc.
  • Several spool control and spool positioning devices
  • Spool with over centre valve hydraulic kick-out built-in
  • All spools can be interchanged, and spool construction is in hardened, nickel-plated steel
  • Parallel circuit with single load check valve on pressure P line
  • on-off electric control with manual override and emergency unloading valve

Technical details for the 1 to 7 section Salami VDM065 series are as follows:

  • 350bar / 5070 psi operating pressure
  • 32mm section distance
  • SAE 8 (ISO 11926-1)
  • G3/8 (ISO 228/1)
  • 75 litres/minute maximum flow per section
  • P circuit, 60 litres/minute nominal flow
  • 350 bar / 5070 psi maximum operating pressure – P
  • 350 bar / 5100 psi maximum operating pressure – A/B
  • 25 bar / 360psi, maximum operating pressure – T

Contact us for further technical details and configuration options.
