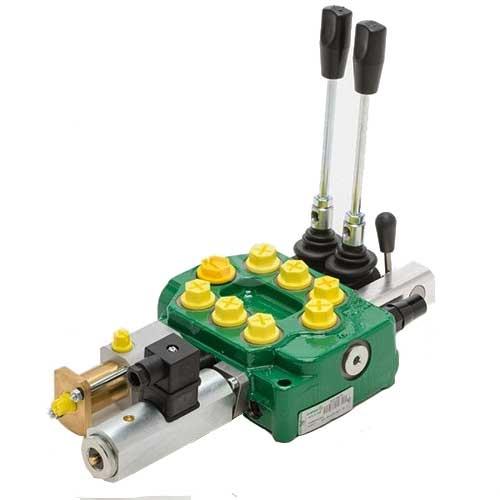

Salami VDM6 Cast Iron Monoblock Valve

The Salami VDM6 series is constructed in cast iron monoblock, from 1 to 7 working sections.

General features:

• Power beyond (HPCO) configuration
• Several types of spool – double, single acting, spool motor, float position, regenerative position etc.
• Several spool control and spool positioning devices
• Spool with over centre valve hydraulic kick-out built-in
• All spools can be interchanged, and spool construction is in hardened, nickel-plated steel
• Parallel circuit with single load check valve on pressure P line
• Tandem or series circuit available only available on the first working section
• On-off electric control with manual override and emergency unloading valve

Technical details for the 1 to 7 section Salami VDM6 series are as follows:

• 350bar / 5070 psi operating pressure
• 32mm section distance
• SAE 8 (ISO 11926-1)
• G3/8 (ISO 228/1)
• 60 litres/minute maximum flow per section
• P/S/T circuit
• 45 litres/minute nominal flow
• 350 bar / 5070 psi maximum operating pressure – P
• 350 bar / 5100 psi maximum operating pressure – A/B
• 25 bar / 360psi, maximum operating pressure – T

Contact us for further technical details and configuration options.
