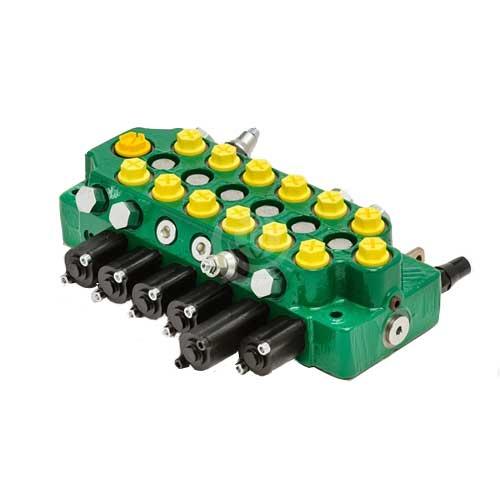

Salami VDM6A Cast Iron Monoblock Valve

Directional Monoblock Valves – Cable Operated / Electronically Operated / Lever Operated / Oil Operated


The Salami VDM6A series is constructed in cast iron monoblock, from 1 to 7 working sections.

General features:

  • Power beyond (HPCO) configuration
  • Several types of spool – double, single acting, spool motor, float position, regenerative position etc.
  • Several spool control and spool positioning devices
  • Spool with over centre valve hydraulic kick-out built-in
  • All spools can be interchanged, and spool construction is in hardened, chromium-plated steel
  • Parallel circuit
  • Load check valve protection on each section
  • Auxiliary valve either on port A or B or on both
  • Single/double-acting conversion port valve and electric carry over

Technical details for the 1 to 7 section Salami VDM6A series are as follows:

  • 350bar / 5070 psi operating pressure
  • 60 litres/minute maximum flow per section
  • P circuit
  • 45 litres/minute nominal flow
  • 350 bar / 5070 psi maximum operating pressure – P
  • 350 bar / 5100 psi maximum operating pressure – A/B
  • 25 bar / 360psi, maximum operating pressure – T

Contact us for further technical details and configuration options.
