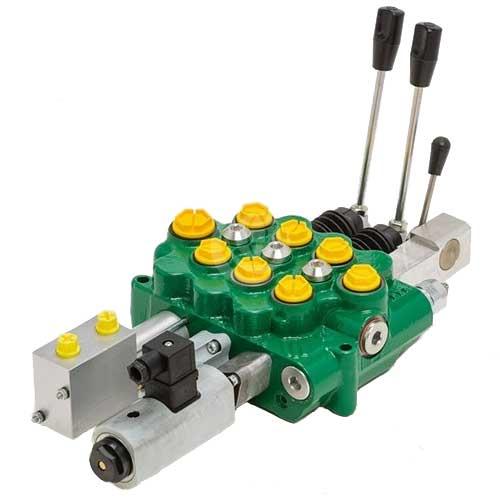

    Salami VDM8 Cast Iron Monoblock Valve

    Directional Monoblock Valves – Cable Operated / Electronically Operated / Lever Operated / Oil Operated

    Description

    The Salami VDM8 series is constructed in cast iron monoblock, from 1 to 5 working sections.

    General features:

    • Power beyond (HPCO) configuration
    • Several types of spool – double, single acting, spool motor, float position, regenerative position etc.
    • Several spool control and spool positioning devices
    • Spool with over centre valve hydraulic kick-out built-in
    • All spools can be interchanged, and spool construction is in hardened, chromium-plated steel
    • Parallel circuit with load check valve protection on each section
    • Auxiliary valve either on port A or B or on both
    • On-off electric control with manual override and emergency unloading valve

    Technical details for the 1 to 5 section Salami VDM8 series are as follows:

    • 350bar / 5070 psi operating pressure
    • 90 litres/minute maximum flow per section
    • P circuit
    • 75 litres/minute nominal flow
    • 350 bar / 5070 psi maximum operating pressure – P
    • 350 bar / 5100 psi maximum operating pressure – A/B
    • 25 bar / 360psi, maximum operating pressure – T

    Contact us for further technical details and configuration options.
