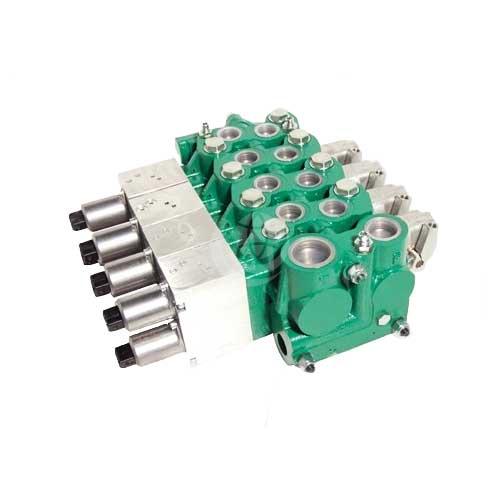

Salami VDP08 Flow Control Valve

The Salami VDP08 series load sensing electro-proportional directional control valves have a cast-iron construction (inlet section, working section, outlet section). Moreover the valve features up to 8 working sections with interchangeable spools.

General features:

• Constructed in hardened and nickel-plated steel
• Available with inlet module for fixed or variable displacement pump
• Inlet module with pressure compensator built-in
• Possibility of auxiliary valve either on port A or B or on both
• Several types of spool: double, single acting, spool motor, float position etc.
• Venting valve option
• Handle, pneumatic, or hydraulic controls available
• Electro-hydraulic open loop on-off
• Proportional control available (12 or 24 vDC)

Technical details for the 1 to 8 section Salami VDP08 series are as follows:

• 350bar / 5070 psi operating pressure
• 130 litres/minute nominal flow on inlet
• 95 litres/minute nominal flow on ports
• DDC/ CDC circuit
• 48 mm section distance
• G 1/2 BSP threads
• 350 bar / 5070 psi maximum operating pressure – P
• 350 bar / 5100 psi maximum operating pressure – A/B
• 10 bar / 145psi, maximum operating pressure – T

Contact us for further technical details and configuration options.
