Voith IPVAP Internal Gear Pumps

Description

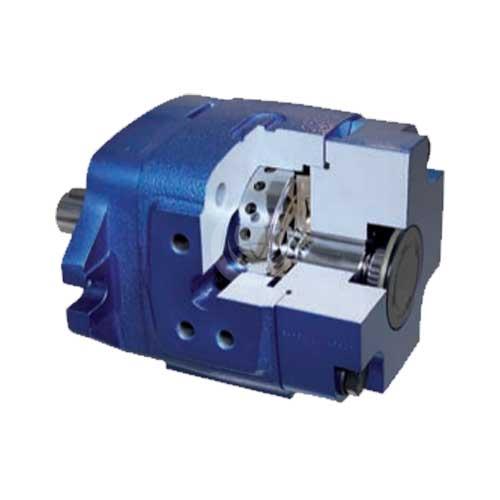

Voith IPVAP pumps are high-pressure internal gear pumps for variable speed drives with radial and axial sealing gap compensation.

When the gears rotate inside the pump, the pressurised fluid (usually hydraulic oil) is drawn into the cavity between the pinion and internal gear. Optimised cross-sectional areas on both the suction side and pressure side ensure operation over a wide range of speed.

In the radial direction, the gear chambers are closed by gear meshing and the filler piece. When in the axial direction, the axial plates seal the pressure chamber with the minimal possible gap. This design minimises volume losses and increases efficiency.

Voith IPVAP pumps are available in 18 sizes with displacements from 3.6 cc/rev to 126.2 cc/rev: IPVAP 3-3.5 | IPVAP 3-5 | IPVAP 3-6.3 | IPVAP 3-8 | IPVAP 3-10 | IPVAP 4-13 | IPVAP 4-16 | IPVAP 4-20 | IPVAP 4-25 | IPVAP 4-32 | IPVAP 5-32 | IPVAP 5-40 | IPVAP 5-50 | IPVAP 5-64 | IPVAP 6-64 | IPVAP 6-80 | IPVAP 6-100 | IPVAP  6-125

Minimum speed across the range is 400 rpm, with maximum speeds varying from 2600 to 3600 rpm. Continuous pressure ranges from 210 bar to 300 bar, with peak pressure ranging from 250 bar to 320 bar.

Download the Voith IPVAP Technical Catalogue >>>

Contact us for further technical details and configuration options.
