Description

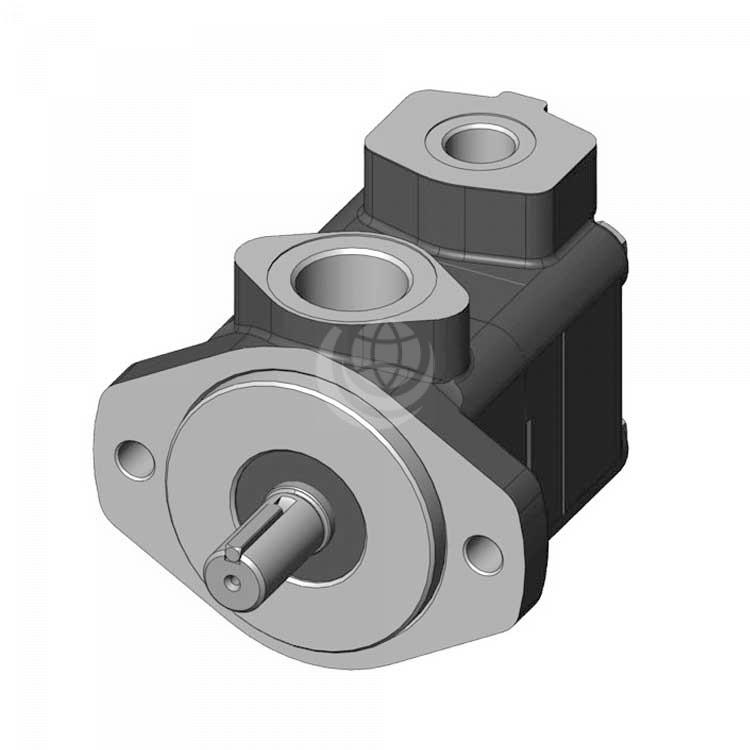

B & C Hydraulics B1 – B2 series vane pumps are suitable for the most demanding of industrial and mobile hydraulic systems. The design provides versatile, reliable, high long-term volumetric efficiency and low noise levels. All B&C pumps are accredited with the internationally recognised ISO 9001 quality management standard, with the B&C Hydraulics offering quality and competitively priced equipment.
Their B1-B2 series offers displacements from 3.29 cc/rev up to 42.44 cc/rev, with working pressure of up to 175 bar and speed range of up to 4800 rpm; a wide choice of shafts flanges and ports are available complying with SAE standards.
B & C B1 pumps are available in eight different versions: B1G10, B1G15, B1G20, B1G30, B1G40, B1G50, B1G60, B1G70 – from 1 to 7 gpm at 1200 rpm, with maximum power of up to 18 kW;
B & C B2 pumps are available in seven different versions: B2G06, B2G07, B2G08, B2G09, B2G11, B2G12, B2G13 – from 6 to 13 gpm at 1200 rpm, with maximum power of up to 27 kW.
Both are supplied with different mechanical and hydraulic connections for simple installation and complete interchangeability with other types of pump.
Contact us now for further technical details and configuration options for B & C Hydraulics B1 – B2 series pumps. Our technical team will be delighted to help!
