Cartridge Needle Flow Control Valves

Precision Flow Regulation in Hydraulic Circuits

Cartridge needle flow control valves, often referred to simply as needle valves, are compact two-way valves designed to block or adjust the flow of hydraulic fluid. They can be set fully open, fully closed, or anywhere in between, providing precise control over actuator speed and system performance. Their cartridge design allows easy integration into hydraulic manifolds and blocks, reducing external piping and simplifying circuit layouts.

At Hydraulics Online, we supply cartridge needle flow control valves from a wide range of global manufacturers – including Hydraforce and many others – with expert advice to help you select the right valve for your application.

Our website shows only a selection of what we supply. For impartial advice and access to our full range of hydraulic components, contact our expert team.

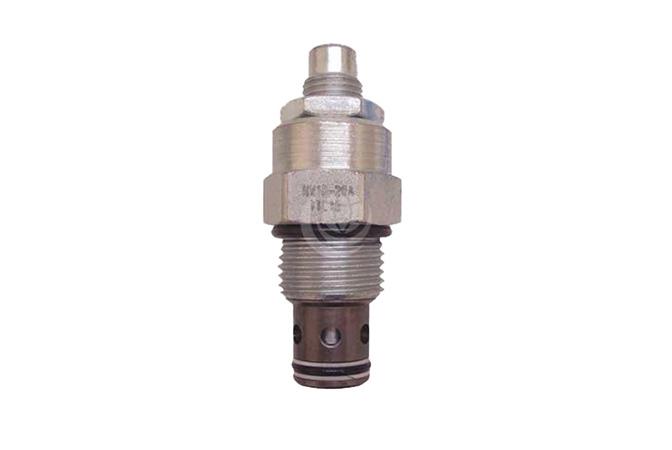

Cartridge Needle Flow Control Valve. For impartial advice and access to our full range of hydraulic components, contact our expert team.

Needle valves use a sharp conical obstruction that is extended or retracted to block or allow fluid flow. Unlike gate valves, needle valves are designed so that fluid must make a non-straight turn inside the valve body, creating a controlled pressure drop across the valve when open. This design provides finer flow regulation and makes them particularly effective in low-flow hydraulic circuits.

Precise flow regulation – allows fine adjustment of actuator speed.
Compact cartridge design – integrates directly into manifolds for space-saving installation.
Reliable performance – robust construction for demanding hydraulic environments.
Versatile functionality – suitable for both fully open/closed and finely throttled positions.
Controlled pressure drop – provides smoother operation compared to standard gate valves.

These valves are widely used in:

Mobile machinery (construction, agriculture, forestry)
Industrial automation and process control
Marine and offshore hydraulic systems
Energy and utility installations
Material handling and lifting equipment

They are particularly valuable in systems requiring precise speed control and stable flow regulation.

How do needle valves differ from gate valves? Needle valves create a greater pressure drop when open, allowing finer flow control compared to gate valves.

Can needle valves be used for load-holding applications? No, they are designed for flow regulation, not for blocking loads under pressure.

Are cartridge needle valves suitable for manifold installation? Yes, their cartridge format makes them ideal for compact manifold integration.
