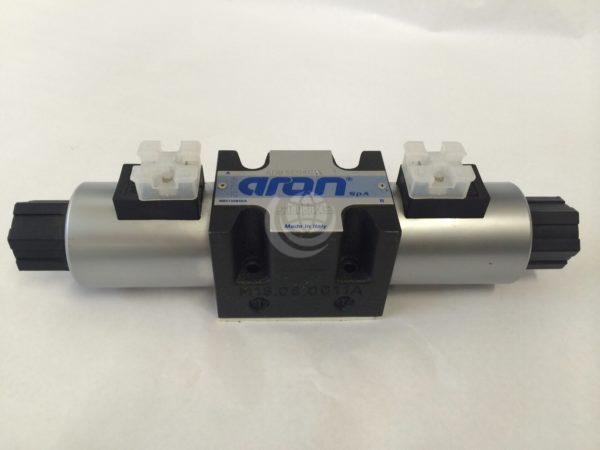

Aron ADB5E Cetop 05 valve 4/3 AC Coil ADB5E04CK003
Cetop 05 Valves – Double Solenoid
Aron ADB5E cetop 05 4/3 double solenoid directional control valve. Technical features and operating parameters for the ADB5E series are as follows:
Maximum pressure ports P/A/B: 350 bar, maximum pressure port T (DC coil): 250 bar, maximum pressure port T (AC coil): 160 bar, maximum flow: 100 litres/minute, maximum excitation frequency: 3 Hz, duty cycle: 100% ED, fluid viscosity: 10 to 500mm2/s, fluid temperature: -25oC to 75oC, ambient temperature: -25oC to 60oC.Valve ADB5E04CK003: spring centred, A&B blocked, P to T, 24v AC / 110v AC / 220v AC, 50/60hZ.
Contact us for further technical details and configuration options.
