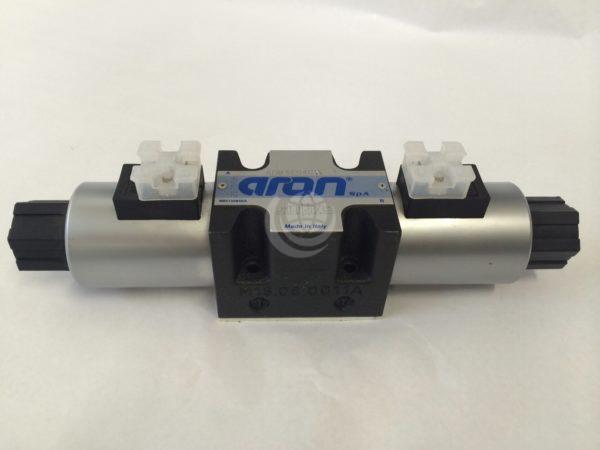

    Aron ADB5E Cetop 05 valve 4/3 DC Coil ADB5E03CW002

    Aron ADB5E Cetop 05 valve 4/3 DC Coil ADB5E03CW002

    Cetop 05 Valves – Double Solenoid

    • Description

    Description

    Aron ADB5E cetop 05 4/3 double solenoid directional control valve. Technical features and operating parameters for the ADB5E series are as follows:

    Maximum pressure ports P/A/B: 350 bar, maximum pressure port T (DC coil): 250 bar, maximum pressure port T (AC coil): 160 bar, maximum flow: 100 litres/minute, maximum excitation frequency: 3 Hz, duty cycle: 100% ED, fluid viscosity: 10 to 500mm2/s, fluid temperature: -25oC to 75oC, ambient temperature: -25oC to 60oC.Valve ADB5E03CW002: spring centred, A&B to T, P blocked, 12v / 24v DC.

    Contact us for further technical details and configuration options.
