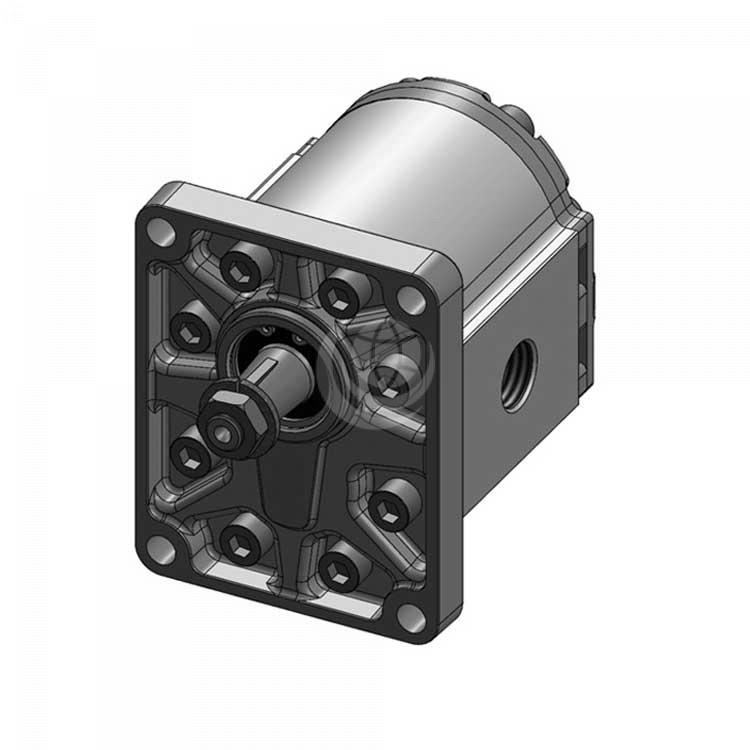

    B & C Hydraulics BG30 Group 3 Gear Pumps

    B & C Hydraulics BG30 Group 3 Gear Pumps

    • Description
    • Technical Data

    Description

    B & C Hydraulics BG30 Group 3 gear pumps have a double compensated pressure design and are equipped with DU bushing. Displacements range from 19.05 cc/rev up to 61.4 cc/rev, with working pressure up to 290 bar and speed range up to 3500 rpm.

    The full series comprises: BG30-19 | BG30-22 | BG30-28 | BG30-33 | BG30-37 | BG30-44 | BG30-52 | BG30-61

    A wide choice of shafts, flanges and ports are available, all complying with international standards (European, Bosch, SAE). An easy tandem kit, means multiple configurations are possible. The B & C Hydraulics BG30 design also provides versatile, reliable, high long-term mechanical and volumetric efficiency, and easy maintenance.

    Contact us for technical details and configuration options.
