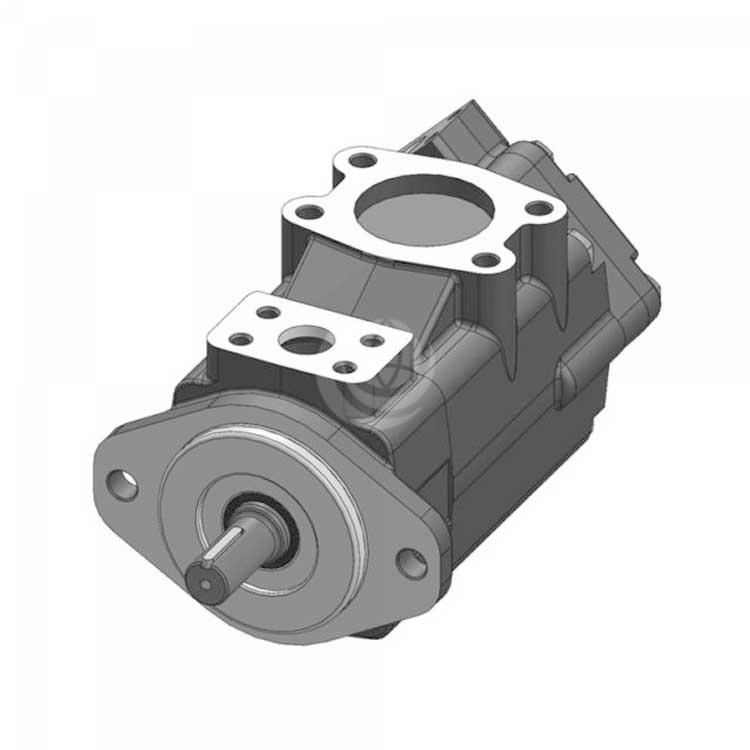

B & C Hydraulics BQ Series Vane Pumps
- Technical Data
B & C Hydraulics BQ series vane pumps are particularly suited to mobile hydraulic systems. The design provides versatile, reliable, high long-term volumetric efficiency and low noise levels.
All the components subject to wear are contained in a cartridge unit that can be easily removed for inspection and/or replacement without disconnecting the pump from the circuit, drastically reducing expensive machine down time. The cartridge contains a rotor, vanes and inserts, a cam ring, two flexible plates and two covers.
During operation the rotor is driven by a splined shaft coupled to the drive unit. As the rotation speed increases, centrifugal forces, in combination with the pressure generated behind the vanes, push the vanes outwards, where they follow the profile of the cam with a sufficient contact pressure to ensure adequate hydraulic sealing. The two opposed pumping chambers formed by the elliptical profile of the cam cancel out radial loads on the shaft bearings, thereby giving them extremely long lifetimes.
The special design of the flexible plates enables any thermal expansion in the rotor to be compensated for and to adequately cope with any sudden change in pressure.
Furthermore, the counter-pressure chambers positioned between the flexible plates and the cartridge covers balance the internal pressure; this ensures that the correct clearance between the rotor and the flexible plates is always maintained so guaranteeing maximum volumetric efficiency (see drawing).
The B & C Hydraulics BQ series pumps is available in:
- five versions of single pump: BQ01 | BQ02 | BQ03 | BQ04 | BQ05 – from 8 to 230 litres/minute at 1200 rpm
- seven versions of double pump: BQ21 | BQ31 | BQ41 | BQ42 | BQ51 | BQ52 | BQ54 – from 55 to 370 litres/minute at 1200 rpm, with maximum powers of over 300 HP.
The BQ series pumps are extremely compact and are supplied with ISO norm mechanical couplings and SAE norm hydraulic fittings. This makes them very easy to install and guarantees their interchangeability with other similar pumps.
Contact us for technical details and configuration options.
