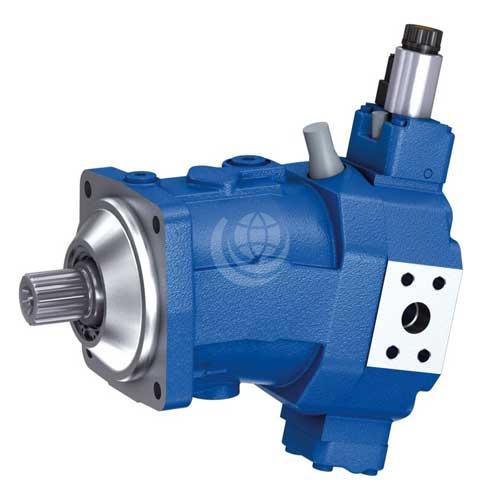

Bosch Rexroth A6VM Series 71 Axial Piston Motor

Description

The Bosch Rexroth A6VM Series 71 motor is an all-purpose, high pressure, variable displacement axial piston motor. It is suitable for open and closed circuits, has a robust, long service life and is approved for very high speeds.

With high starting efficiency and excellent slow-running characteristics, the A6VM motor is designed with both an optional attached flushing and boost-pressure valve and an integrated or attached counterbalance valve.

The A6VM motor is available in sizes: 060 | 085 | 115 | 150 | 170 |  215 |  280 cc/rev.

Other features of the Bosch Rexroth A6VM series 71 axial variable piston motor include:

  • Nominal pressure 450 bar
  • Maximum pressure 530 bar (sizes 60 to 215)
  • Maximum pressure 500 bar (size 280)
  • Robust motor with long service life
  • Approved for very high speeds
  • High starting efficiency
  • Excellent slow-running characteristics
  • Large variety of controls
  • Wide control range (can be swiveled to zero)
  • High torque
  • Optional attached flushing and boost-pressure valve
  • Optional integrated or attached counterbalance valve
  • Bent-axis design

Contact us for further technical details.

Download the Bosch Rexroth A6VM Series 71 Technical Catalogue >>>
