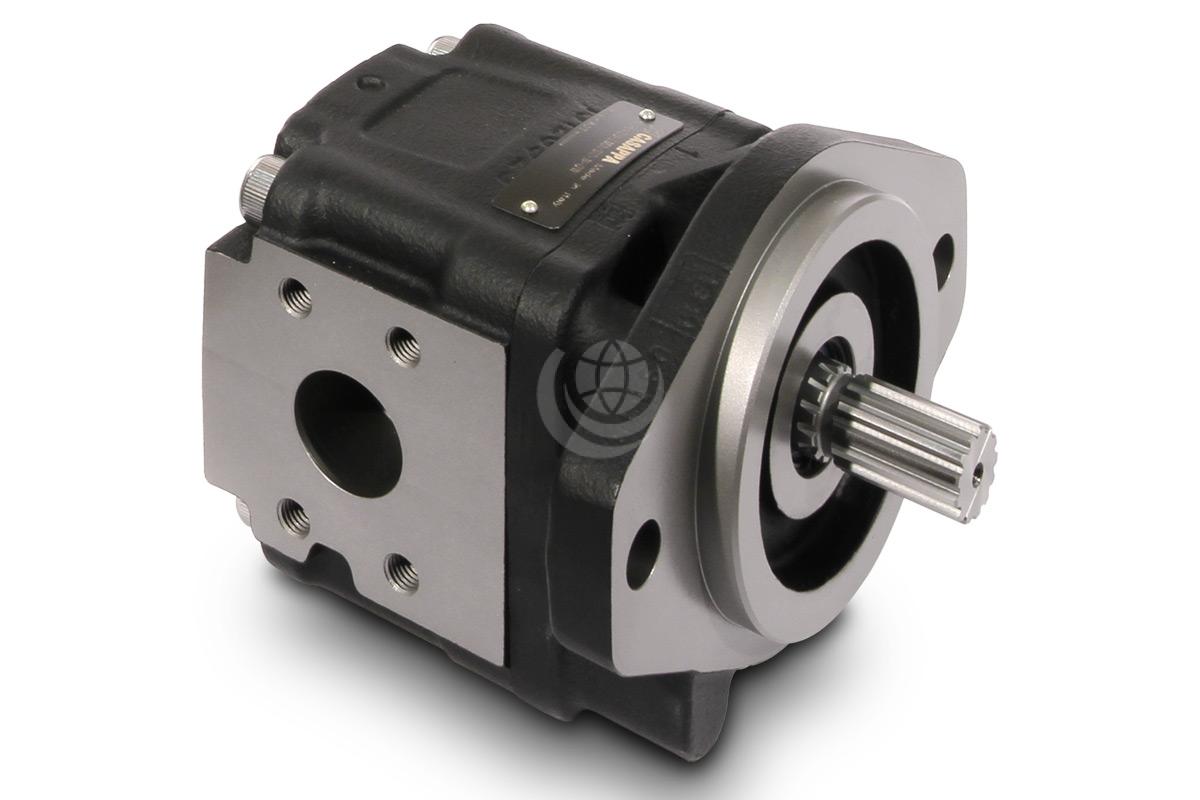

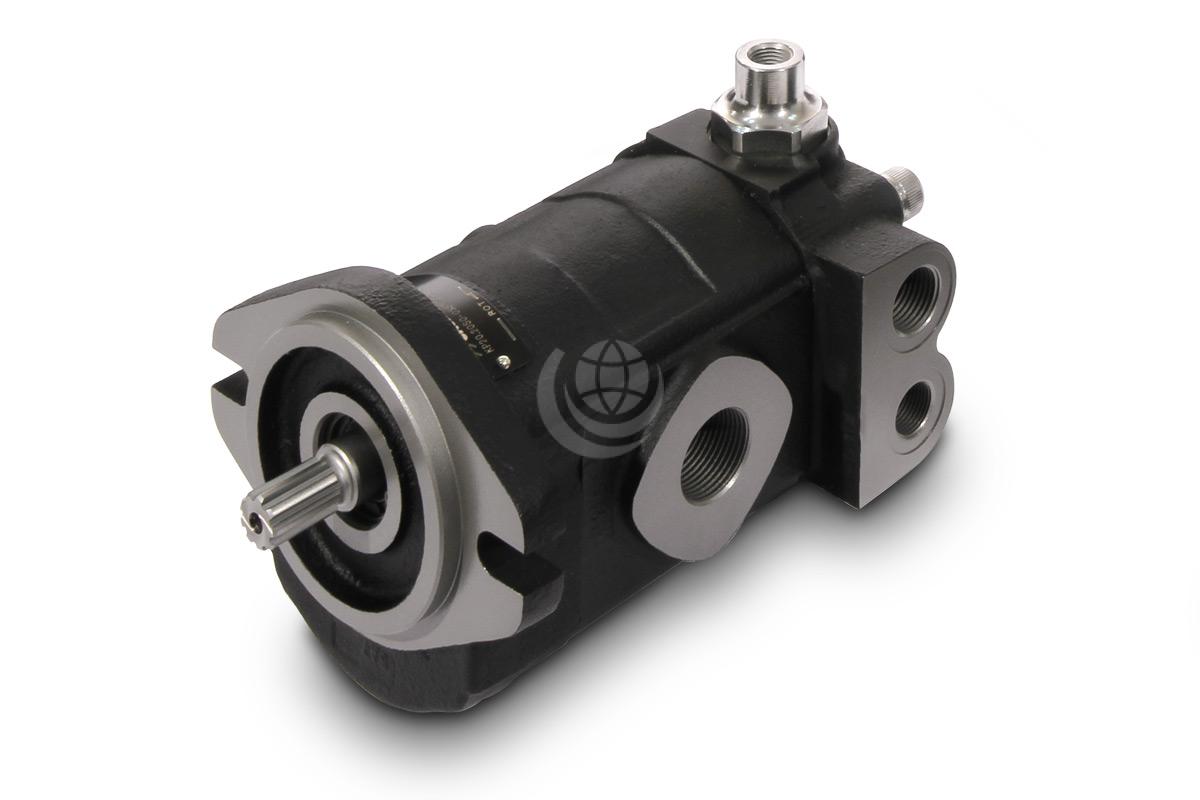

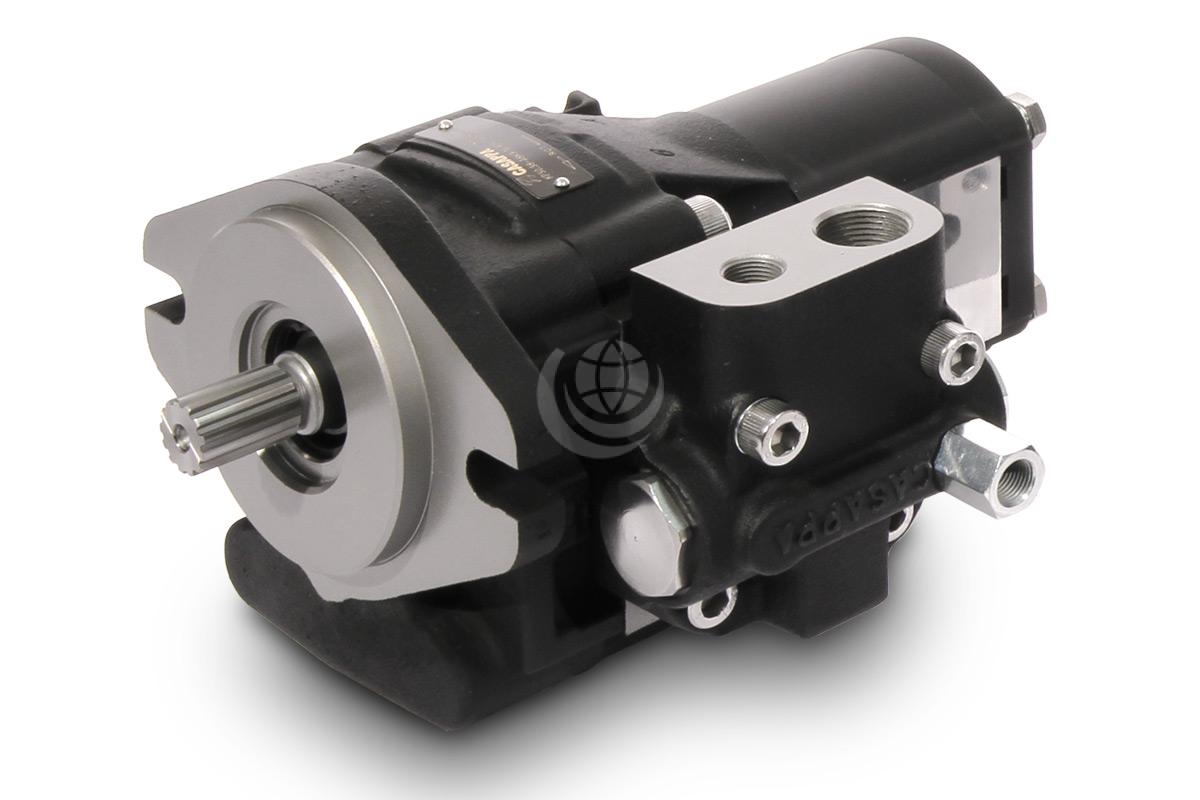

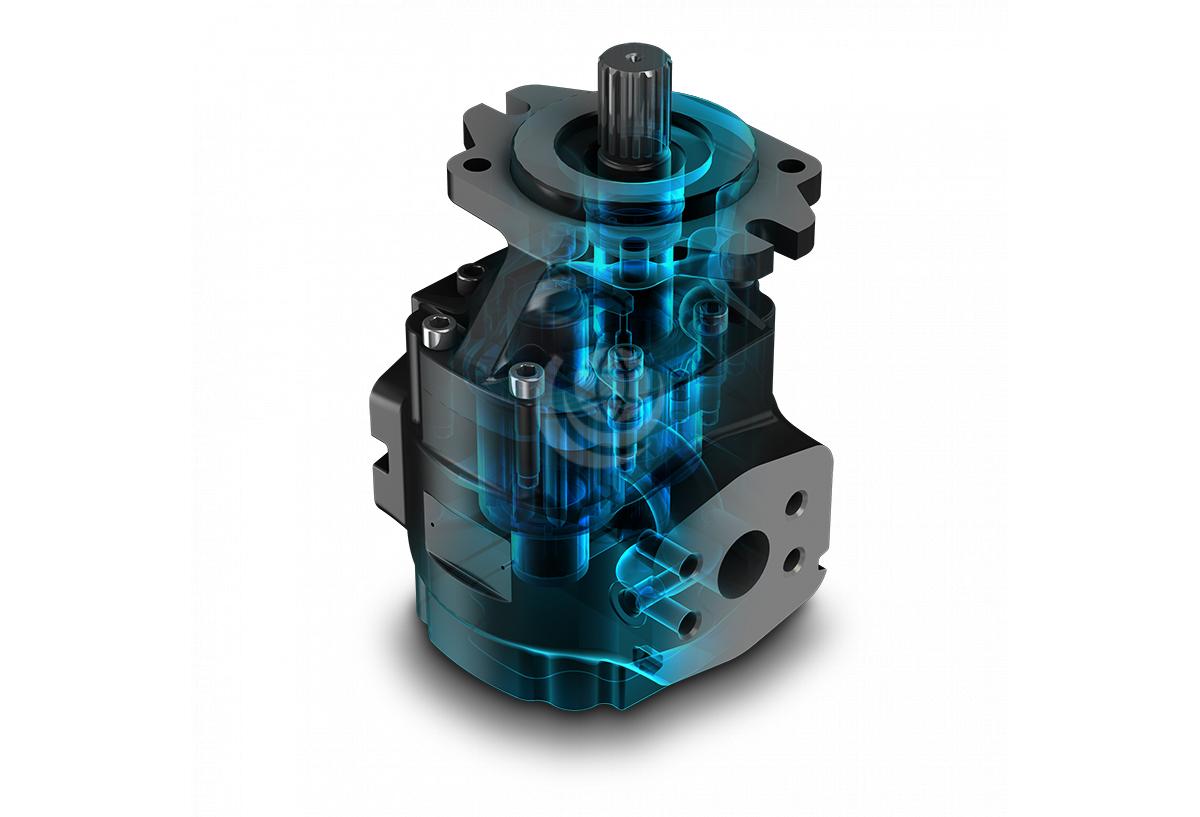

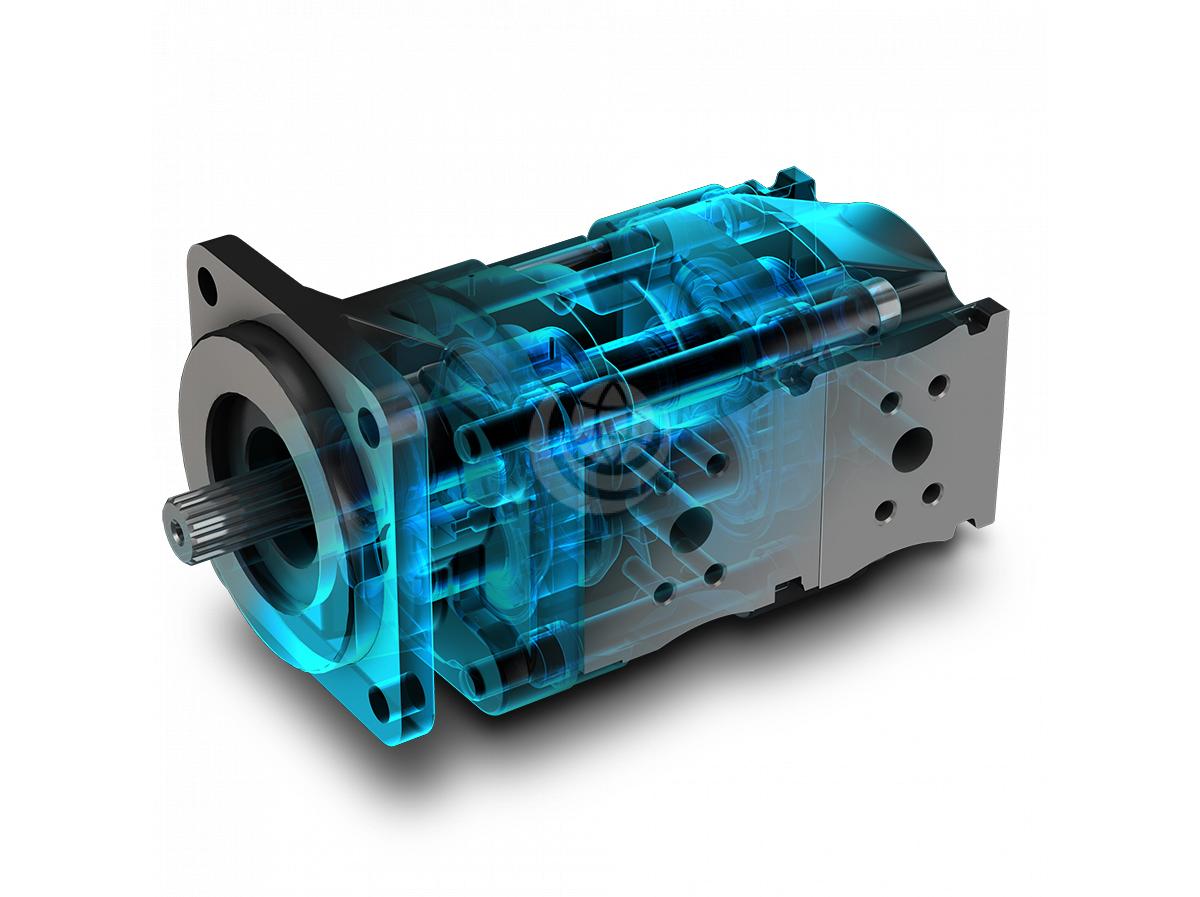

    Casappa Kappa K Series Gear Pumps and Motors

    Casappa Kappa K Series Gear Pumps and Motors

    Description

    Casappa Kappa K series gear pumps and motors are made of cast iron in two pieces, and are available as: Kappa, Kappa Compact or Kappa 40 Plus for heavy duty applications

    The rigid and compact structure of the Casappa Kappa K series makes it possible to incorporate a number of functions in a limited space.

    Available in a wide range of displacements: from 0.30 in³/rev (4.95 cm³/rev) to 11.02 in³/rev (180.3 cm³/rev) and in groups 20, 25, 30, 35 and 40.

    • Maximum peak pressure up to 4785 psi (330 bar)
    • Maximum speed up to 4000 min-1
    • High operating pressures
    • High efficiency at high temperature
    • Low noise emission
    • Exceptional working life expectancy
    • Solid and compact design
    • Custom design

    Optional built-in valves:

    • Anti-shock and anti-cavitation valves
    • Priority valves
    • “Load sensing” priority valves
    • By-pass electric valves

    Contact us now for technical advice and configuration options.

    CASAPPA KAPPA 20
    Model SeriesDisplacement cm³/revMaximum Continuous Pressure (bar)Maximum Speed  (min -1)
    K. 20.44.952854000
    K. 20.6,36.612854000
    K. 20.88.262853500
    K. 20.11,211.232753500
    K. 20.1414.532653500
    K. 20.1616.852603000
    K. 20.2021.142103000
    K. 20.2526.421802500
    K. 20.31,533.031402000
    CASAPPA KAPPA 30
    Model SeriesDisplacement cm³/revMaximum Continuous Pressure (bar)Maximum Speed  (min -1)
    K. 30.2726.72803000
    K. 30.3434.562603000
    K. 30.3839.272603000
    K. 30.4343.982503000
    K. 30.5151.832302500
    K. 30.5656.542152500
    K. 30.6161.262002500
    K. 30.7373.821802500
    CASAPPA KAPPA COMPACT 30
    Model SeriesDisplacement cm³/revMaximum Continuous Pressure (bar) p3Maximum Speed  (min -1)
    K. 30.2221.993003000
    K. 30.2726.72803000
    K. 30.3130.632603000
    K. 30.3434.562503000
    K. 30.3839.272503000
    K. 30.4141.622903000
    K. 30.4343.982703000
    K. 30.4646.432503000
    K. 30.5151.832502500
    K. 30.5656.542302500
    K. 30.6161.262202500
    K. 30.7373.822102500
    CASAPPA KAPPA 40 +
    Model SeriesDisplacement cm³/revMaximum Continuous Pressure (bar) p3Maximum Speed  (min -1)
    KP40.10099.792902700
    KP40.109108.92902700
    KP40.121121.82802700
    KP40.133134.032802700
    KP40.151150.792802700
    KP40.160160.772702500
    KP40.180180.732502200
