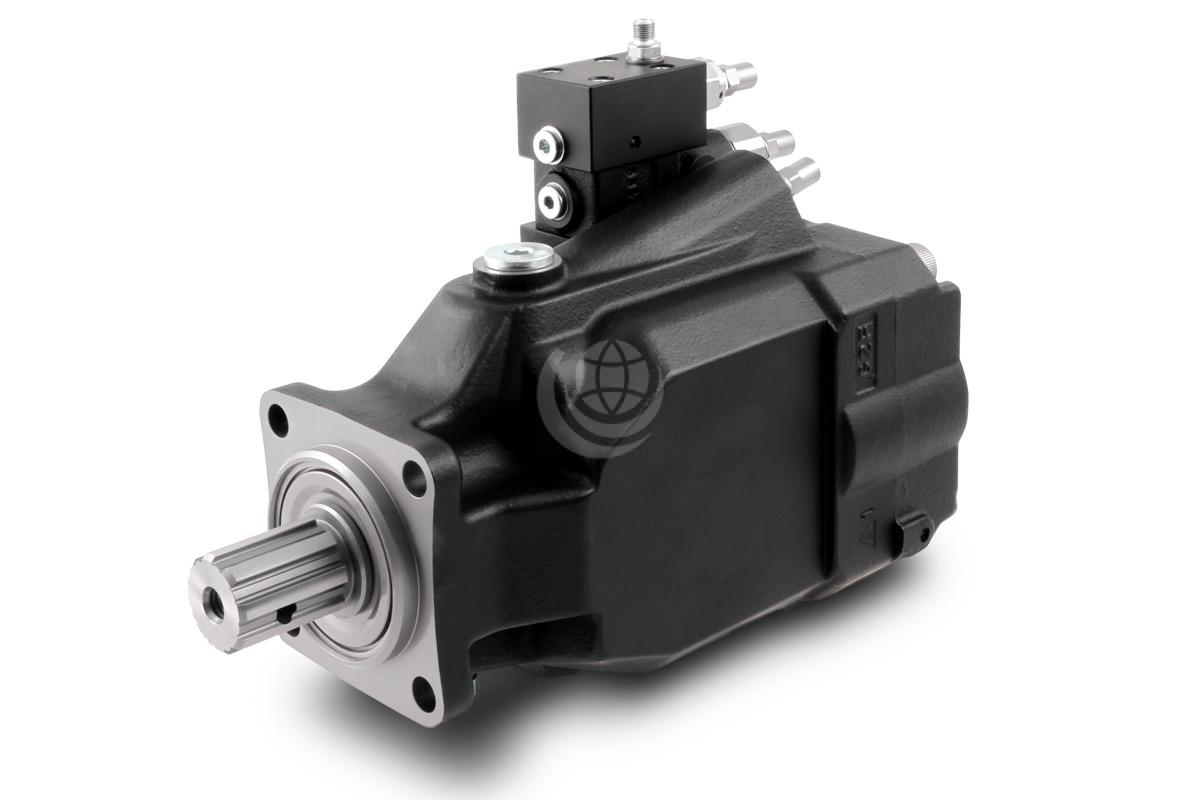

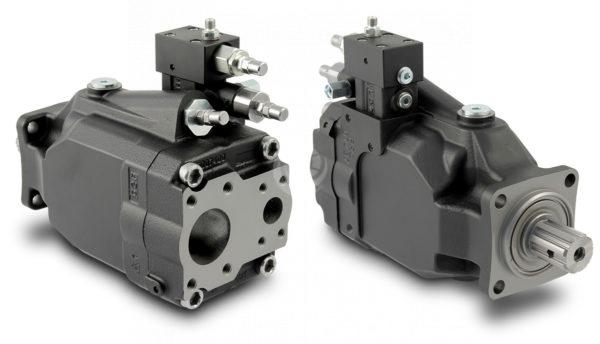

Casappa TVP Series Axial Piston Pumps

Description

Casappa TVP series variable displacement axial piston pumps have a swash plate design and are ideally suited for open-circuit truck applications.

The compact design allows the pump to be mounted directly on to a Power Take Off unit.

Displacements from 3.66 in³/rev (60 cm³/rev) to 5.17 in³/rev (84.7 cm³/rev).

  • Maximum peak pressure up to 5800 psi (400 bar)
  • Maximum speed up to 3000 min-1
  • Pump internal drain line
  • Compensators external drain line
  • Direct mounting on the PTOs
  • Body width 4.8898 in (124,2 mm)
  • Compact design
  • Low noise emission

Optional controls for the Casappa TVP series:

  • Minimum and maxium displacement limiter
  • Flow and pressure (load-sensing) compensator
  • Electro-proportional pressure compensator
