    Dana Brevini H1C Axial Piston Pump

    Dana Brevini H1C Axial Piston Pump

    Description

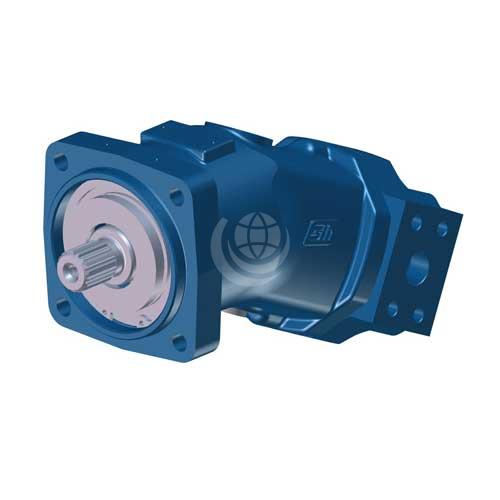

    Dana Brevini H1C pumps are fixed displacement, bent axis, axial piston pumps. They can be used in both open and closed circuits and are available in both metric and SAE mounting configurations.

    The H1C series is available in 11 displacements from 6 cc/rev to 226 cc/rev: H1C 006 | H1C 012 | H1C 020 | H1C 030 | H1C 040 | H1C 055 | H1c 075| H1C 090 | H1C 108 | H1C 160 | H1C 226

    Nominal pressure is 350 bar continuous (5100 psi) and peak pressure is 450 bar (6500) psi.

    Maximum flow across the series ranges from 30.3 to 360 litres/minute.

    Download the Dana Brevini H1C Technical Catalogue>>>

    Contact us for further technical details and configuration options.
