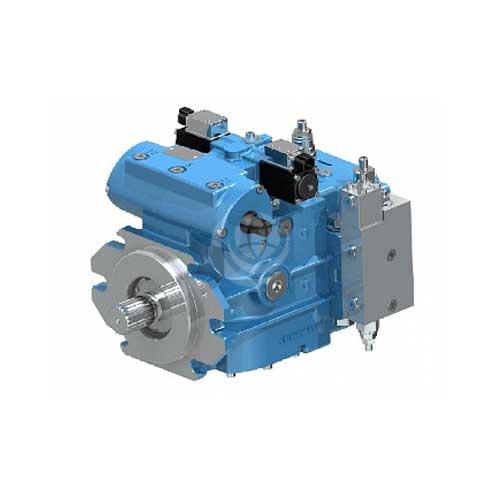

Dana Brevini HD1 Axial Piston Pump

The Dana Brevini HD1 pump is a variable axial piston pump with a swash plate design. It is for use in closed circuit hydrostatic transmissions and has a through-drive shaft on option.

Flow delivery is proportional to the rotation speed and the swash plate angle. The delivery increases when the swash plate’s angle of inclination increases from 0 to maximum position. When inverting the swash plate’s angle, the flow direction is inverted.

The HD1 pump has a displacement of 55 cc/rev. It can operate at a continuous pressure of 450 bar (6525 psi) and peak pressure of 480 bar (6960 psi).

Dana Brevini Motion Systems is the division of Dana Off-Highway Motion and Drive Technologies and is the result of the acquisition by Dana of the Breveni Fluid Power business.

Dana Brevini is committed to customer satisfaction and excellence of their products and services. This means the company offers superior product quality, technologically advanced products, world-class service and competitive prices.

Download the Dana Brevini HD1 Technical Catalogue >>>

Contact us for further technical details and configuration options.
