Description

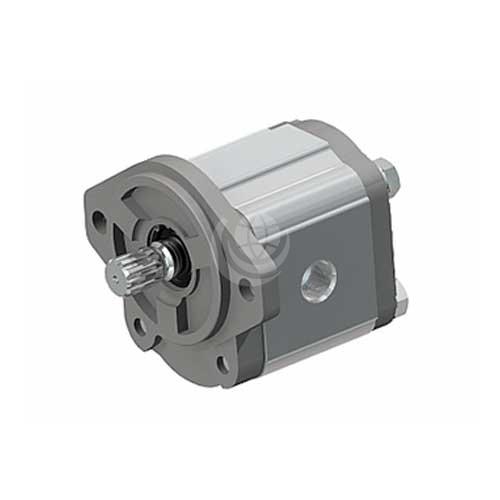

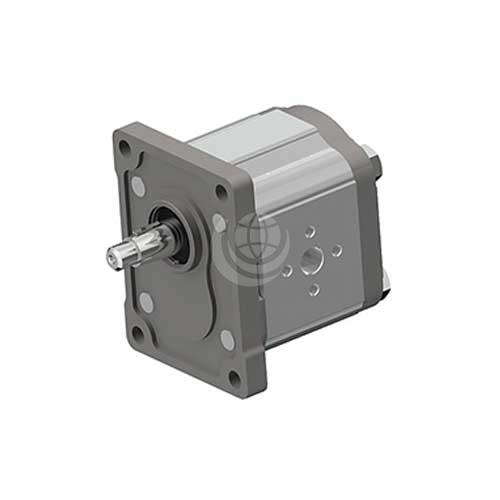

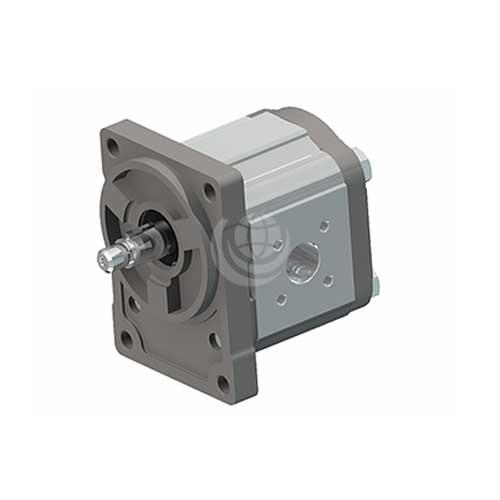

Dana Brevini OT200 gear pumps are group 2 gear pumps. They have an extruded aluminium alloy gear housing and cast iron mounting flanges and cover.
This construction makes them suitable for heavy working conditions, and capable of transmitting high hydraulic powers. They offer very good mechanical and volumetric efficiencies and low noise levels. Suction and pressures ports can be GAS threaded or flanged.
The OT200 series is available in 11 displacements from 4.10 cc/rev to 30.00 cc/rev: OT200 P04 | OT200 P06 | OT200 P08 | OT200 P11 | OT200 P14 | OT200 P16 | OT200 P20 | OT200 P22 | OT200 P25 | OT200 P28 | OT200 P30
Maximum working pressures range from 130 to 250 bar, with peak pressures from 170 to 300 bar and maximum speeds of 2000 to 4000 rpm.
Dana Brevini Motion Systems is the division of Dana Off-Highway Motion and Drive Technologies and is the result of the acquisition by Dana of the Breveni Fluid Power business. The company is committed to customer satisfaction and excellence of their products and services. This means they offer superior product quality, technologically advanced products, world-class service and competitive prices.
Download the Dana Brevini OT200 Technical Catalogue >>>
Contact us for further technical details and configuration options.
