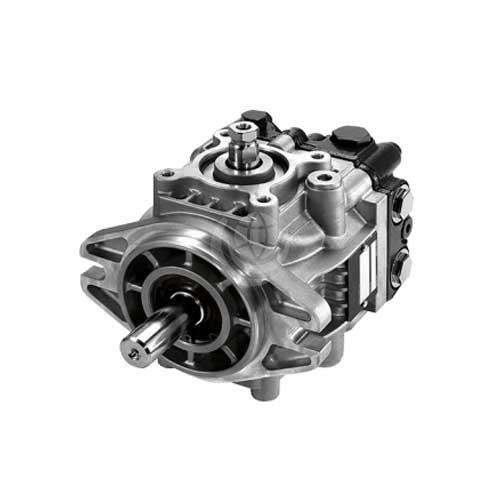

Danfoss DDC20 Axial Piston Pumps

Description

The DDC20 uses proven technology which enables it to operate reliably in light duty applications. Its design includes many optional features which provides for a large degree of application flexibility. Its compact size helps the DDC20 fit in tight places and allows for a more simplified hydraulic circuit design. The DDC20 is a high quality light duty pump which offers expanded functionality, great total efficiency, low noise, and easy installation.

Well suited for turf care applications, compact utility tractors, harvesters, small rollers, and agricultural vehicles, technical features and operating parameters of the Danfoss DDC20 pump include:

  • Displacement: 20cm³
  • Weight with charge pump: 10.0kg
  • Input speed: 500 min-1 minimum | 4000 min -1 rated | 4500 min -1 maximum
  • System pressure: 300 bar maximum working pressure | 345 bar maximum pressure | 4 bar minimum low loop
  • Case pressure 1.5 bar rated, 3 bar maximum

Contact us for further technical details.

Download the Danfoss DDC20 Technical Catalogue >>>
