Danfoss Hydraulic Pumps

Danfoss hydraulic pumps cover mobile and industrial applications across construction, agriculture, forestry, material handling, and off-road equipment. The mobile range includes closed- and open-circuit axial piston pumps and gear pumps. Industrial piston pumps, including the PVM, PVMX, PVH, PVB, PVQ and Hydrokraft series, are supplied under the Vickers by Danfoss brand and are also listed on this page.

Closed Circuit Piston Pumps

Danfoss closed-circuit piston pumps are used in hydrostatic transmission systems where variable speed and bidirectional control are required.

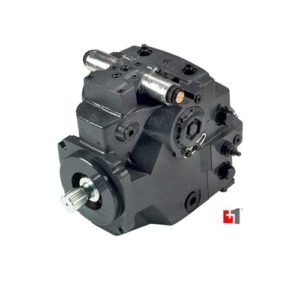

H1P Series: Variable displacement axial piston pump for closed-circuit applications. Available in 15 displacements from 45 to 280 cm³. The cradle swashplate design allows flow direction reversal without additional components. Compatible with all Danfoss hydraulic motors.
H1T Series – Tandem: A tandem version of the H1P, available in four displacements from 45 to 68 cm³. Suited to dual-path applications including skid steer loaders, harvesters and compact loaders.
Series 90: Variable displacement closed circuit pumps, displacements from 55 to 250 cm³, available in three frame sizes.
Series 1: High-pressure closed-circuit piston pumps for demanding mobile applications.

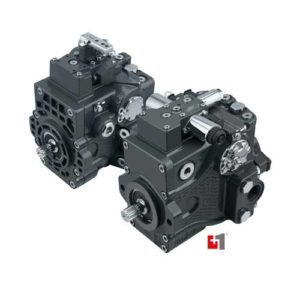

MP1: Medium-power closed-circuit axial piston pumps, displacements from 28 to 45 cm³, maximum application pressure 400 bar. Modular design with a true clean side and integrated loop flush on 28/32 cm³ models. Available with mechanical, electrical and hydraulic control options.
MP1T – Tandem: Tandem version of the MP1 for dual-circuit applications.
Series 40/M35 and Series 42: Medium-power closed-circuit pumps for lighter mobile applications.

Open Circuit Piston Pumps

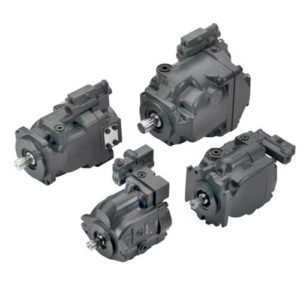

Series 45: Variable displacement open circuit axial piston pumps. Displacements from 25 to 147 cm³, continuous pressure up to 310 bar, maximum speed 3,600 rpm. Available with a range of control options, including electronic torque limiting. Five frame sizes: E, F, J, K and L.

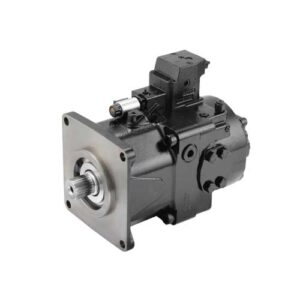

D1P: High-power open circuit axial piston pump, displacements from 25 to 147 cm³, continuous pressure up to 310 bar.
DDP: Open circuit piston pump for mobile applications.
X20: Variable displacement open circuit piston pumps, displacements from 18 to 98 cm³, continuous pressure up to 280 bar.

Gear Pumps

Danfoss aluminium gear pumps cover Groups 0 through 4 for mobile and industrial applications. Cast iron construction is available through the XD and D series. Turolla gear pumps are listed separately on the Turolla brand page.

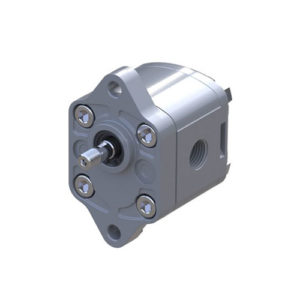

Group 0: Compact aluminium gear pumps for light-duty mobile applications.
Group 1: Aluminium gear pumps for mobile and industrial applications.

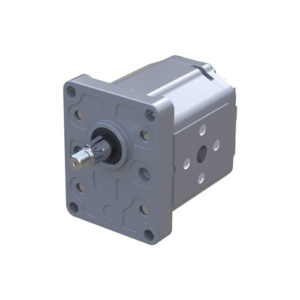

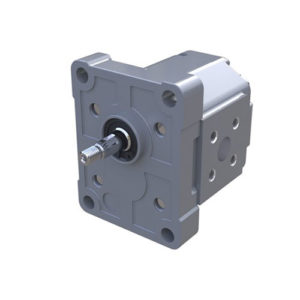

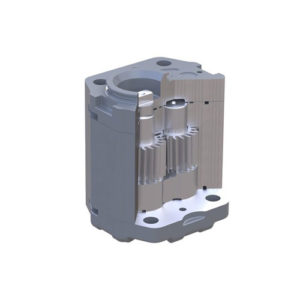

Group 2: Includes the Shark series with 10 dB noise reduction over conventional gear pumps.

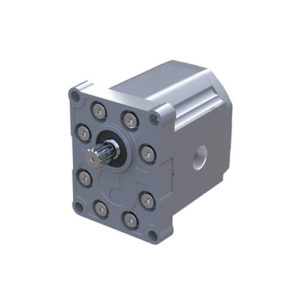

Group 3: Aluminium gear pumps for medium to higher flow applications.

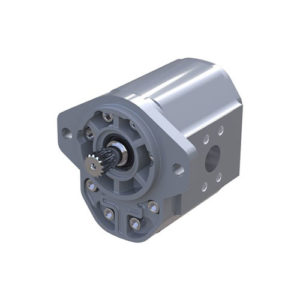

Group 4: Displacements from 58 to 194.3 cm³/r.

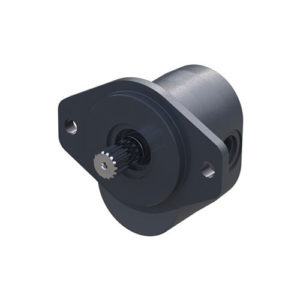

XD and D Series: Cast iron gear pumps for applications requiring greater robustness than aluminium construction

Typical Applications

Danfoss hydraulic pumps are used across a wide range of mobile and industrial sectors, including:

Construction and civil engineering machinery
Agricultural equipment and harvesters
Forestry machinery
Material handling and logistics equipment
Compact equipment, including skid steer loaders and utility vehicles
Off-road vehicles and specialist mobile machinery
Marine and offshore equipment
Oil and gas drilling machinery
Industrial power units

Our website shows a selection of the Danfoss hydraulic pumps we supply. If you cannot find what you need or would like impartial advice on the right specification for your application, please contact our team – we source globally and will still be able to help.

Closed-circuit pumps are used in hydrostatic transmission systems where fluid circulates between the pump and motor without returning to the reservoir between cycles. They allow bi-directional control and variable speed. Open-circuit pumps draw fluid from a reservoir and deliver it to the hydraulic system, with fluid returning to the reservoir after each cycle. Open-circuit systems are more common in work function applications such as cylinders and motors.

The H1P is a single, variable displacement closed-circuit pump available in 15 displacements from 45 to 280 cm³. The H1T is a tandem version combining two pump sections in a single housing, available in four displacements from 45 to 68 cm³. The H1T is particularly suited to dual-path applications such as skid steer loaders and harvesters.
