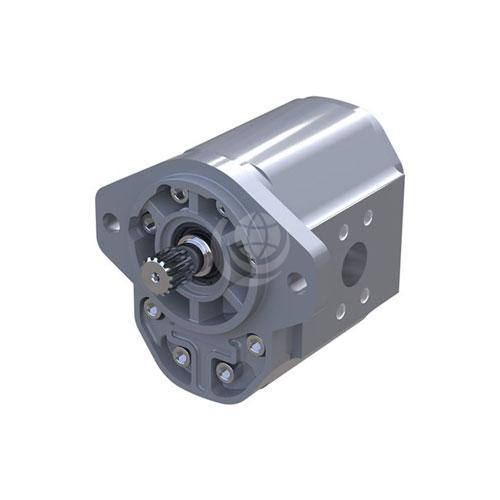

Danfoss TAP4NN Group 4 Gear Pumps

The Danfoss TAP4NN Group 4 is a range of peak performance fixed-displacement gear pumps.

Constructed of a high-strength extruded aluminium body with aluminium cover and flange, all pumps are pressure-balanced for exceptional efficiency.

These gear pumps are available in 7 frame / displacement sizes from 58.0 cc/rev to 194.3 cc/rev: 58.0 | 83.3 | 103.4 | 126.1 | 143.8 | 174.1 | 194.3

Other performance characteristics across the range:

• Peak pressure to 230 bar / 3335 psi;
• Rated pressure to 220 bar / 3190 psi;
• Minimum speed, 480 to 650 rpm;
• Maximum speed, 2400 to 3000 rpm;
• SAE and European configurations.

Download the Danfoss TAP4NN Technical Catalogue >>>

Contact us for further technical details and configuration options.
