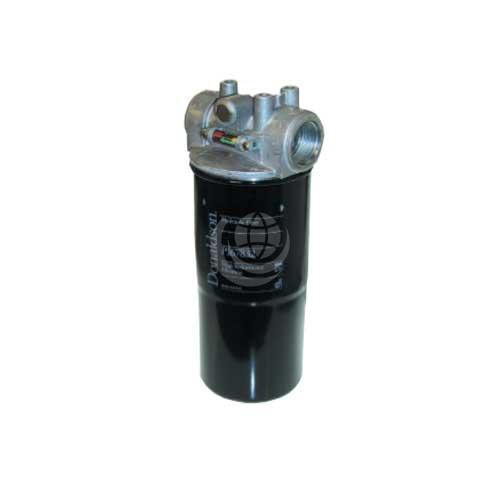

Donaldson HBK05 Spin-On Filters

Description

Donaldson HBK05 filters are strong, durable, low pressure, spin-on filters.  They have a heavy-duty steel canister with a rigid steel attachment plate for added strength and a die-cast aluminium filter head.

These filters are suitable for: cooling circuits, fluid conditioning systems, hydrostatic charge pumps, lube oil systems, power transmissions, return lines and side loop systems.

Maximum working pressures go to 10.3 bar (150 psi) and rated static burst to 17.2 bar (250 psi). Their flow range is to 227  litres/minute and operating temperature range is -30°C to 107°C (-22°F to 225°F).

The HBK05 is available with a choice of visual or electrical service indicators, and bypass ratings of 50 psi, 25 psi, or 5 psi. The filter media is Donaldson’s Synteq™ synthetic media.

All HBK05 filters are interchangeable with SP50/60, SP80/90 and SP100/120 spin-on filters, and have 1½” – 16 UN threads.

Download the Donaldson HBK05 Technical Catalogue >>>

Contact us for further technical details and configuration options.
