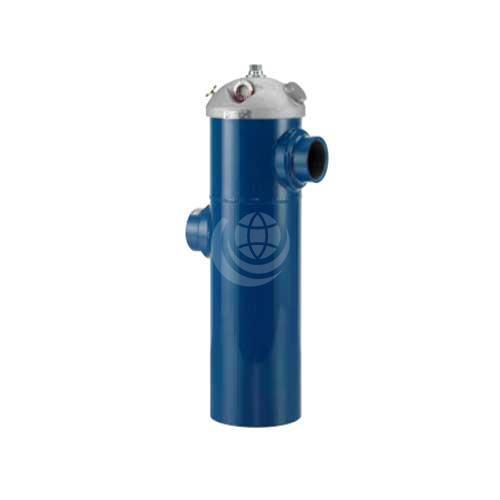

Donaldson HFK08 In-Line Cartridge Filters


Donaldson HFK08 filters are available in two styles: in-line and in-tank. Both feature a cast aluminum head and steel body for maximum strength and durability.

They are suitable for applications including: fluid conditioning systems, lube oil systems, return lines, side loop systems and suction lines.

Maximum working pressures go to 24.1 bar (350 psi) and rated static burst to 34.5 bar (500 psi). Flow range is to 1135 litres / minute and operating temperature range is -29°C to 121°C (-20°F to 250°F)

Standard bypass rating is 1.7 bar (25 psi).

A single, centre retention bolt simplifies servicing. Flow is from inside to outside of the filter cartridge. A visual service indicator is built into the HFK08 head.

Download the Donaldson HFK08 Technical Catalogue >>>

Contact us for further technical details and configuration options.
