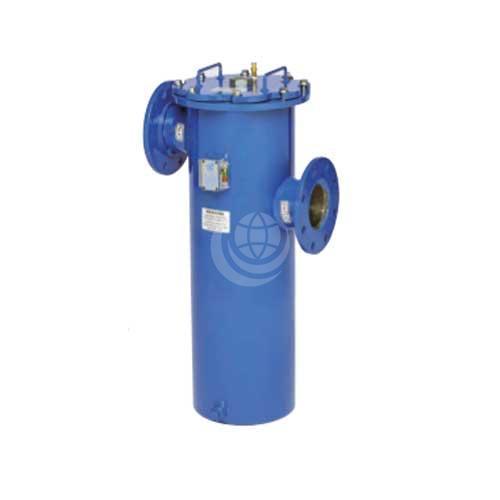

Donaldson HRK10 In-Line Cartridge Filters


Donaldson HRK10 filters are in-line cartridge filters for low pressure filtration. They have replaced the former HEK11 filters and feature ANSI inlet port options, top cover filter servicing and a selection of service indicators.

The HRK10 has an all-steel housing design that provides a strong, durable, and dependable unit. It offers standard features like deep pleat filters for higher dirt holding capacity and standard Donaldson DT 4-layer media filter construction.

It is ideal for fluid conditioning systems, in-plant systems, lube oil systems, and side loop systems in applications including: pulp and paper, power generation and steel mill.

Maximum working pressures go to 10.3 bar (150 psi) and rated static burst to 34.5 bar (500 psi). Their flow range is to 1135  litres/minute and operating temperature range is -29°C to 121°C (-20°F to 250°F).

A port for an electrical indicator is incorporated into the differential indicator block. Standard bypass ratings are: 50 psi, 25 psi, or 5 psi, or no bypass.

Download the Donaldson HRK10 Technical Catalogue >>>

Contact us for further technical details and configuration options.
