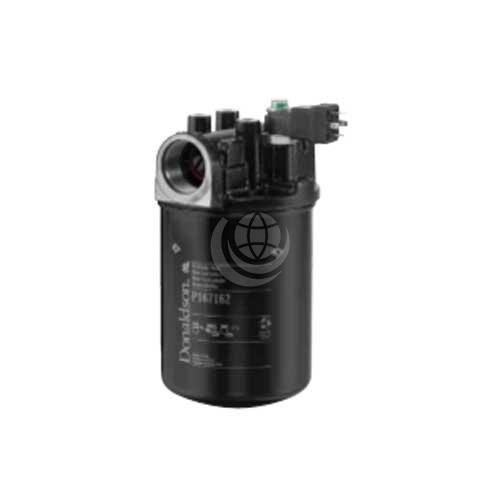

Donaldson W023 Spin-On Filters


Donaldson W023 filters are versatile, low pressure, spin-on filters for use in high corrosion environments. They are suitable for fluid conditioning systems, in-plant systems, mobile equipment, power transmissions and process systems.

Maximum working pressures go to 10.3 bar (150 psi) and rated static burst to 17.2 bar (250 psi). Their flow range is to 227 litres/minute and operating temperature range is -30°C to 107°C (-22°F to 225°F).

Standard bypass ratings are either 3.5 bar (50 psi) or no bypass.

The filter’s iron head construction can be ordered with a differential pressure indicator port. A range of media type ensures that the the filter can also be configured to suit the application.

Download the Donaldson W023 Technical Catalogue >>>

Contact us for further technical details and configuration options
