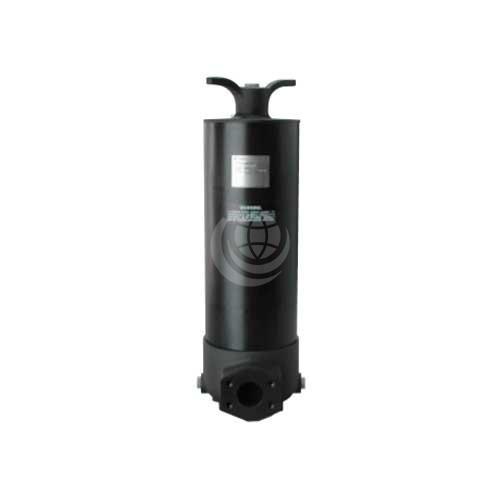

Donaldson W041 In-Line Cartridge Filters


Donaldson W041 filters are in-line cartridge filters. They have a plated steel cylinder, cast iron cover with a bleed/fill plug and aluminium base.

These filters have several inlet port options and a top cover filter servicing and a wide selection of service indicators.

W041 filters are suitable for: fluid conditioning systems, in-plant systems and mobile equipment in applications such as pulp, steel mills and power generation.

Maximum working pressures go to 34.5 bar (500 psi) and rated static burst to 103.5 bar (1500 psi). Their flow range is to 1135 litres/minute and operating temperature range is -29°C to 121°C (-20°F to 250°F).

Standard bypass rating is 3.5 bar (50 psi).

Download the Donaldson W041 Technical Catalogue >>>

Contact us for further technical details and configuration options.
