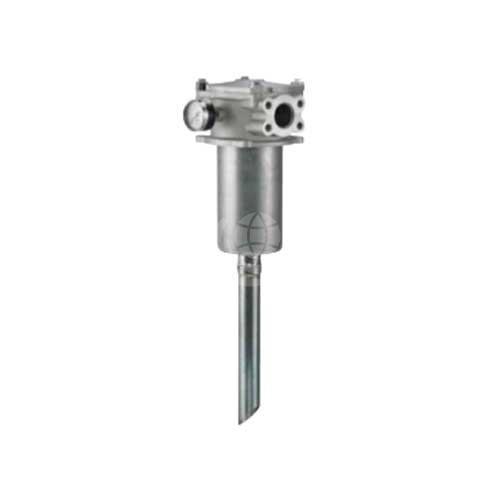

Donaldson WL15 In-Tank Filters

Description

Donaldson WL15 filters are in-tank filters that meet the HF4 automotive standard.

They are designed for low pressure applications including: cooling circuits, fluid conditioning systems, lube oil systems, process systems, return lines and side loop systems.

They have a quick disconnect cover that enables easy and efficient filter changes. DT High Performance replacement filters are available in five different media grades to fit any application.

Maximum working pressures go to 13.8 bar (200 psi) and rated static burst to 20.7 bar (300 psi). Their flow range is to 189 litres/minute and operating temperature range is -43°C to 121°C (-45°F to 250°F). Standard bypass ratings are: 3.5 bar (50 psi) and 1.72 bar (25 psi).

Download the Donaldson WL15 Technical Catalogue >>>

Contact us for further technical details and configuration options.
