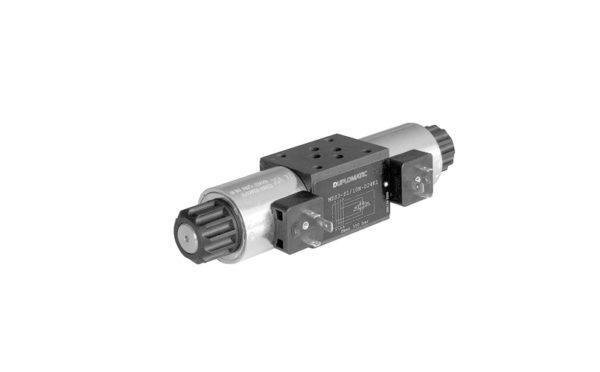

    Duplomatic MDS3 Solenoid Actuated Switching Valve

    Duplomatic MDS3 Solenoid Actuated Switching Valve

    Description

    The Duplomatic MDS3 valve is used for switching flow directions and selecting the pressure levels in a stack mounting.

    The ports of the valve are arranged parallel to the P – T – A – B lines on the circuit. This design allows for high adaptability to many different hydraulic configurations, reducing the pressure drops to a minimum. The valve is available with DC or AC solenoids; DC solenoids can also be fed with AC power supply via a built-in rectifier bridge.

    Key technical details for the MDS3 are as follows:

    • Maximum operating pressure: 350 bar (5076 psi)
    • Maximum flow: 50 litres/ minute (13.2 gallons/minute)
    • Potential controls include: standard manual override, push buttons, boot and mechanical detent devices.

    For more specific product details please download the Duplomatic MDS3 technical catalogue >>>

    Contact us for further technical details and configuration options.
