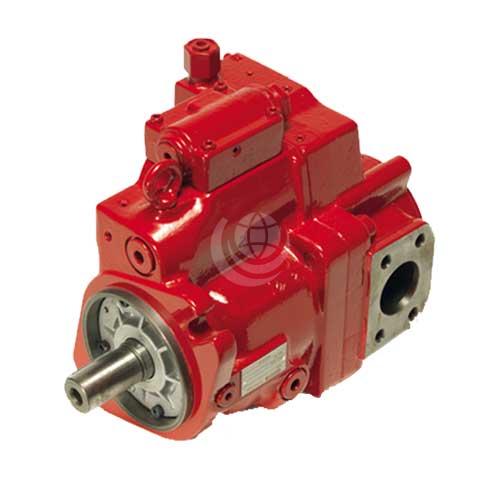

Hydac PPV101 Axial Piston Pumps


Hydac PPV101 pumps are medium heavy duty axial piston pumps with a swash plate design. They are for use in open circuits.

They are available with displacements from 45 cc/rev to 200 cc/rev:

PPV101-45 | PPV101-80 | PPV101-112 | PPV101-140 | PPV101-200

Rated pressure across the range is 320 bar, peak pressure is 350 bar. Minimum drive speed is 600 rpm and maximum drive speed ranges from 1900 rpm to 2700 rpm.

Pressure control, load sensing control, constant power control and flow rate control are available.

Download the Hydac PPV101 Technical Catalogue >>>

Contact us for further technical details and configuration options.
