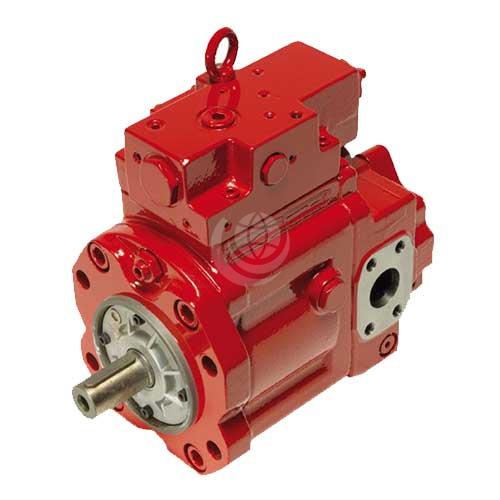

Hydac PPV102 Axial Piston Pumps

Description

Hydac PPV102 pumps are medium heavy duty axial piston pumps with a swash plate design. They are for use in open circuits.

They are available with displacements from 63 cc/rev to 560 cc/rev:

PPV102-63 | PPV102-112 | PPV102-180 | PPV102-280 | PPV102-360 | PPV102-560

Rated pressure across the range is 350 bar, peak pressure is 400 bar. Minimum drive speed is 600 rpm, maximum drive speed ranges from 2000 rpm to 3250 rpm, maximum self-priming speed ranges from 1500 rpm to 1800 rpm .

Pressure control, load sensing control, constant power control and flow rate control are available.

Download the Hydac PPV102 Technical Catalogue >>>

Contact us for further technical details and configuration options.
