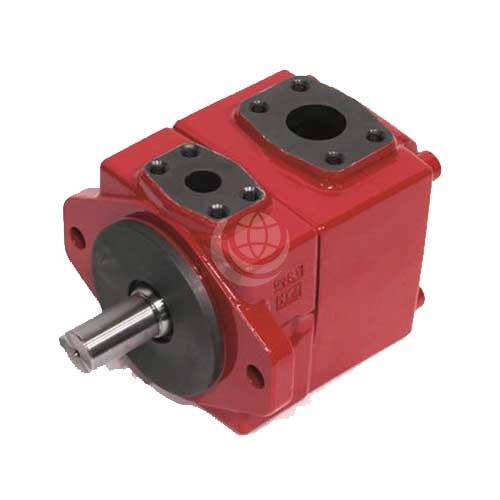

Hydac PVF100 Vane Pumps

Hydac PVF100 pumps are fixed displacement vane pumps that are suitable for use in open circuits.

PVF pumps are available in 4 sizes with displacements ranging from 5.8 cc/rev to 237 cc/rev. Nominal pressures are up to 210 bar and rated speeds are up to 1800 rpm.

Size 1 PVF100 pumps are available from 6 cc/rev to 31 cc/rev: PVF100-1-6 | PVF100-1-8 | PVF100-1-10 | PVF100-1-12 | PVF100-1-14 | PVF100-1-17 | PVF100-1-19 | PVF100-1-23 | PVF100-1-25 | PVF100-1-31

Size 2 PVF100 pumps, from 41 cc/rev to 65  cc/rev: PVF100-2-41 | PVF100-2-47 | PVF100-2-53 | PVF100-2-59 | PVF100-2-65

Size 3 PVF100 pumps, from 76 cc/rev to 116 cc/rev: PVF100-3-76 | PVF100-3-94 | PVF100-3-116

Size 4 PVF100 pumps, from 136 cc/rev to 237 cc/rev: PVF100-4-136 | PVF100-4-153 | PVF100-4-184 | PVF100-4-200 | PVF100-4-237

Hydac PVF100 pumps are also available as as double pumps, coded PFV101.

Download the Hydac PVF100 Technical Catalogue >>>

Contact us for further technical details and configuration options.
