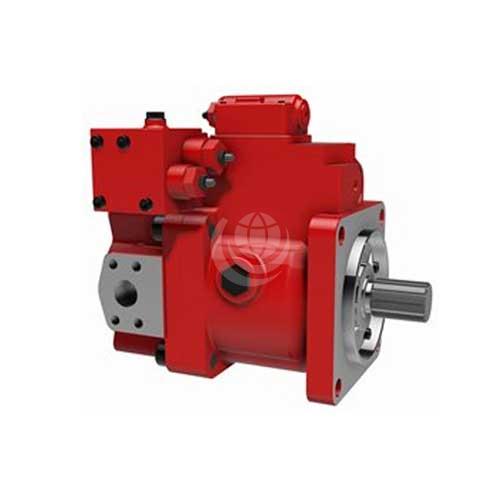

Kawasaki K3VL Axial Piston Pumps


Kawasaki K3VL series swash plate type axial piston pumps are designed to satisfy the marine, mobile and industrial markets where a medium/high pressure variable displacement pump is required.

K3VL pumps are available in nominal displacements ranging from 28 to 200 cm3/rev with various pressure, torque limiter, and combination of load sensing control options:

Pump Type Capacity (cm3/rev)Rated Pressure (bar)Max. Self-Priming Speed (rpm)
K3VL28 283203000
K3VL60 602502400
K3VL80 803202400
K3VL112 1123202300
K3VL140 1403202200
K3VL200 2003201900
K3VL200H 2003202200

Features include:

  • 320 bar continuous pressure rating (250 bar for K3VL60)
  • 350 bar peak pressure (280 bar for K3VL60)
  • High overall effciency (>90% peak)
  • Exceptional self priming capability
  • SAE and ISO mounting and shaft
  • Excellent reliability and very long service life
  • High power to weight ratio
  • Numerous control options
  • Highly responsive controls
  • Low pulsation and noise emissions
  • Integral unloading or proportional pressure relief valves available
    High speed version with integral impeller (K3VL200H)

Contact us for further technical details and configuration options.

Download the Kawasaki K3VL Technical Catalogue >>>
