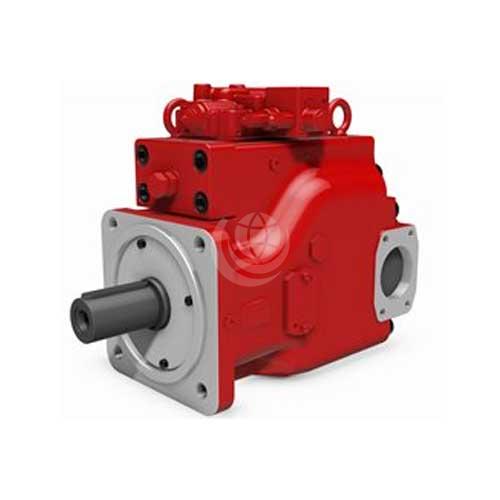

Kawasaki K7VG Axial Piston Pumps


Kawasaki K7VG series high-pressure swash plate type pumps are suitable for general industrial machinery use.

High-load bearings and the friction-free contacting mechanism of piston shoes, results in a high level of reliability and long life.

The spherical valve plate and improved hydraulic balance provide stable cylinder rotation – achieving high efficiency even in a low-pressure and low-speed operating range. The shortened radius of the cylinder port reduces the peripheral fluid velocity thereby enabling its high self-priming speed capability.

Good varieties of hydraulic and electrical control methods are available. Various sizes of auxiliary pumps can be attached the rear SAE through-drive mounting interface; there is no need for a separate pump unit as a control pressure source or as a medium-pressure system pressure source.

Pump Model K7VG180K7VG265
Displacement cc/rev 80270
Rated Pressure (bar)343343
Peak Pressure (bar)400400
Max. Self-Priming Speed18501600
Max. Boosted Speed22001900


  • 343 bar rating
  • Long bearing life
  • ISO mount and shaft
  • Optional through-drive
  • High reliability
  • High efficiency
  • Low noise
  • Highly responsive controls

Contact us for further technical details and configuration options.

Download the Kawasaki K7VG Technical Catalogue >>>
