Description

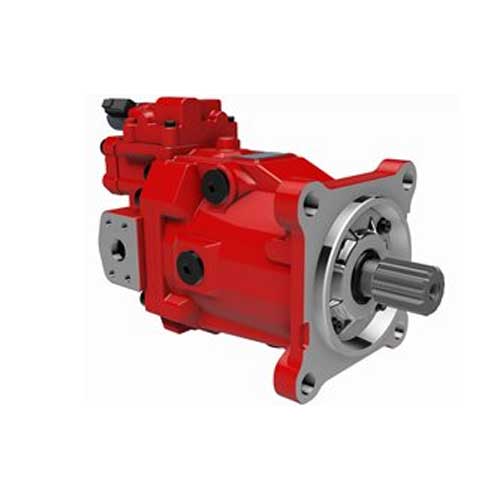

Kawasaki M7V series variable displacement axial piston motors are for use in open and closed circuit operations. Various control options make the motor suitable for a wide range of applications including construction machinery and industrial vehicles.
| M7V Model | 85 | 112 | 160 | 212 |
|---|---|---|---|---|
| Minimum Displacement (cm³) | 68 | 90 | 128 | 170 |
| Maximum Displacement (cm³) | 88.5 | 112 | 160 | 215 |
| Maximum Speed (rpm) | 6150 | 5600 | 4900 | 4600 |
| Nominal Pressure (Mpa / psi) | 40 / 5,800 | 41 / 5,800 | 42 / 5,800 | 6100 |
| Maximum Pressure (Mpa / psi) | 45 / 6,500 | 45 / 6,500 | 45 / 6,500 | 50 / 7,200 |
| Theoretical Output Torque (Nm) | 541 | 713 | 1019 | 1437 |
| Power (kW) | 221 | 265 | 331 | 436 |
| Maximum Flow (l/min) | 332 | 398 | 496 | 623 |
| Mass (kg) | 39 | 46 | 63 | 90 |
Features include:
- Superior performance at high and low speed: optimised rotary balance design enables high speed perfomance and excellent low speed characteristics
- Low noise: swash plate design ensures low noise levels
- Compact size: swash plate design provides the more compact structure and exibility in system design
- Long bearing life
Contact us for further technical details and configuration options.
