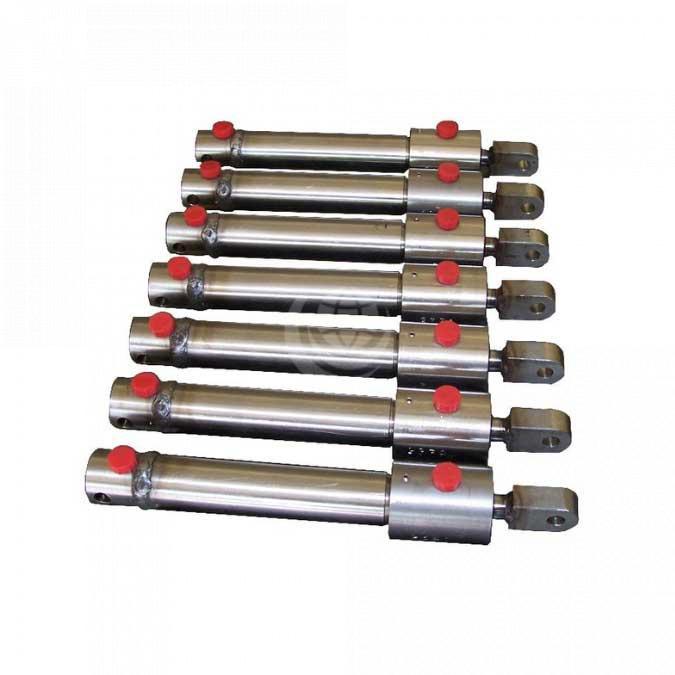

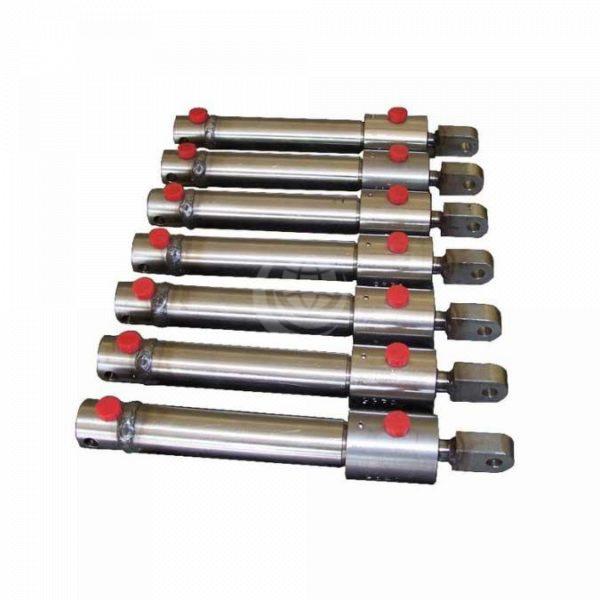

    HOL/WM Series Marine Hydraulic Cylinders

    HOL/WM Series Marine Hydraulic Cylinders

    • Description

    Description

    Made here in the UK, our HOL/WM series welded marine hydraulic cylinders meet ISO 6020/2 – 1991, DIN 24554 requirements.

    Their heavy-duty construction, wide range of mounting styles and customisable design features means they are suitable for a wide range of marine and subsea applications.

    Available with a bore ranging from 25mm to 250mm; rod ranging from 16mm to 180mm.

    Key features include:

    • Maximum working pressure: 250 bar;
    • Fluids: Mineral oils, soluble oils, HWB fluids, and Esther based fluids;
    • Operational speeds: 500 mm/sec subject to fluid type and pressure;
    • Temperature range: -10C to +80C;
    • Marinised gland.

    Available with a choice of: standard or custom designed mountings, piston rod materials, male or female rod end threads, and nitrile, viton or low friction seals to suit your requirements.

    Contact us for further technical details and configuration options.

    We can also supply custom design marine hydraulic cylinders tailored to your specific application and operating parameters – just complete our Hydraulic Cylinder Design Form with as much detail as you can, and we’ll then be in touch to confirm your requirements in full.

    Clear
    SKU: HOL/WM
